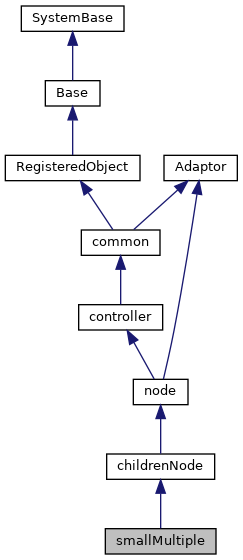

Inheritance diagram for smallMultiple:

[legend]

Collaboration diagram for smallMultiple:

[legend]

Public Attributes
	colClass
	col-class: column CSS class or attribute set More...

	colStyle
	col-style: column CSS style More...

	colWidth
	col-width: column width More...

	fillOrder
	fill-order is used to define how the small multiple is filled by the temporary tree defined by the group which is a collection of More...

	name
	name: name of small-multiple defaults to "small-multiple". More...

	numcols
	num-cols: number of columns in table holding small multiple More...

	numrows
	num-rows: number of rows in table holding small multiple More...

	rowClass
	row-class: row CSS class or attribute-set More...

	rowStyle
	row-style: row CSS style More...

	rowWidth
	row-width: row width More...

	tableClass
	table-class: table CSS class or attribute-set More...

	tableStyle
	table-style: table CSS style More...

	tableWidth
	table-width: table width More...

Public Attributes inherited from childrenNode
	children
	More...

	parent
	More...

	xpath
	More...

Public Attributes inherited from node
	class
	Specifies the node's style class. More...

	htmlstyle
	same as style only HTML only More...

	level
	use to pass down result set from table when table uses sql to generate itself More...

	selectstylecond
	list of conditions - true one at index i selects style More...

	selectstylelist
	list of styles - picked by first true index i in list of conditions More...

	style
	The style string is given in the form "attribute1:value1;attribute2:value2;...",. More...

	stylecall
	stylecall - name of xsl:template to call to output style attributes More...

	styleparamNames
	for each name here an xsl:with-param is generated with its name attribute set from here More...

	styleparams
	list of xpaths, xpath function calls, and XSLT function calls. More...

	tag
	Calculated property that contains the tag name of the node. More...

	template
	Specifies the template that can be used to add children to the node. More...

	width
	Specifies the width of the element within its containing object (page, table cell, etc.) More...

	withinSmallmultiple
	used to flag table or item, etc., as being under a small mutiple More...

	xmlnamespace
	We use these to record namespace and namespace prefix for qualified name. More...

	xmlnamespaceprefix
	More...

	xpath
	More...

	xslfostyle
	same as style only XSL-FO only More...

Public Attributes inherited from controller
	applyLevel
	More...

	ifexpression
	More...

	ifxpath
	More...

	includeColIfExpression
	More...

	includeColIfXPath
	More...

	includeColUnlessExpression
	More...

	includeColUnlessXPath
	More...

	unlessexpression
	More...

Public Attributes inherited from common
	composite
	@qualifier final For components that are created as part of a composite(template component, More...

	id
	This is a unique identifier that is used to distinguish this object. More...

Private Member Functions
_.Library.Status	DrawToHTML (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.Boolean incell)
	This method outputs the necessary stylesheet information for the HTML report. More...

_.Library.Status	DrawToXSLFO (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.Boolean incell)
	This method outputs the necessary stylesheet information for the PDF report. More...

Additional Inherited Members
Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...

_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...

_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...

_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...

_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...

Public Member Functions inherited from Adaptor
_.Library.Status	XMLExport (_.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent, _.Library.Boolean local, _.Net.MIMEPart mimeAttachments)
	Serialize an XML enabled class as an XML document and write. More...

_.Library.Status	XMLExportToStream (_.Stream.Object export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and appends it to a stream. More...

_.Library.Status	XMLExportToString (_.Library.String export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and write it to a string. More...

Static Public Member Functions inherited from Adaptor
_.Library.Status	XMLDTD (_.Library.String top, _.Library.String format, _.Library.Boolean input, dtdlist)
	Write the DTD to the current device for this XML enabled class serialized as. More...

_.Library.RegisteredObject	XMLNew (_.XML.Document document, _.Library.Integer node, _.Library.RegisteredObject containerOref)
	Get an instance of an XML enabled class. More...

_.Library.Status	XMLSchema (_.Library.String top, _.Library.String format, _.Library.String namespacePrefix, _.Library.Boolean input, _.Library.Boolean refOnly, schema)
	Write an XML Schema fragment to the current device which describes an XML enabled class and dependent classes. More...

_.Library.String	XMLSchemaNamespace ()
	Get the namespace to which this class belongs for use in schema generation. More...

_.Library.Status	XMLSchemaType (_.XML.Schema schemaInstance, _.XML.Node node, _.Library.String top, _.Library.Boolean encoded, _.Library.Boolean summary, _.Library.Boolean input, _.Library.Boolean refOnly)
	Add a complexType to the schema that is respresented by an <class>XML.Schema</class> instance. More...

Static Public Attributes inherited from node
	NAMESPACE = None
	XML namespace used for Zen Report display definitions.

	XMLIGNOREINVALIDATTRIBUTE = None
	By setting this to 0, we disallow use of invalid attribute names in Zen Report XML documents.

Static Public Attributes inherited from common
	NAMESPACE = None
	XML namespace used for Zen Report display definitions.

	XMLFORMAT = None
	If XMLFORMAT="Literal", then only support for literal format import and export is generated. More...

Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...

	JAVATYPE = None
	The Java type to be used when exported.

	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...

Static Public Attributes inherited from Adaptor
	ATTRIBUTEQUALIFIED = None
	ATTRIBUTEQUALIFIED controls the format of exported XML by controlling whether attributes. More...

	ELEMENTQUALIFIED = None
	ELEMENTQUALIFIED controls the format of exported XML. More...

	NAMESPACE = None
	NAMESPACE specifies the XML namespace to be used when projecting the. More...

	SUPPRESSTYPEPREFIX = None
	SUPPRESSTYPEPREFIX allows the type name that refers to this class. More...

	XMLDEFAULTREFERENCE = None
	XMLDEFAULTREFERENCE specifies the default value of the XMLREFERENCE property parameter. More...

	XMLENABLED = None
	If this parameter is true then XML-enabling methods. More...

	XMLFORMAT = None
	The XMLFORMAT parameter controls the generation of the XMLExport and XMLImport. More...

	XMLIGNOREINVALIDATTRIBUTE = None
	The XMLIGNOREINVALIDATTRIBUTE parameter allows the programmer to control handling of unexpected. More...

	XMLIGNOREINVALIDTAG = None
	The XMLIGNOREINVALIDTAG parameter allows the programmer to control handling of unexpected. More...

	XMLIGNORENULL = None
	XMLIGNORENULL allows the programmer to override the default XML handling. More...

	XMLINCLUDEINGROUP = None
	XMLINCLUDEINGROUP allows the programmer to control whether a class is included. More...

	XMLINHERITANCE = None
	If the XMLINHERITANCE parameter is set to "LEFT", then in the case of multiple. More...

	XMLNAME = None
	This parameter provides the default XMLNAME for the class. More...

	XMLNIL = None
	The XMLNIL class parameter controls the use of xsi:nil by XMLExport. More...

	XMLNILNOOBJECT = None
	The XMLNILNOOBJECT parameter allows creation of an object to be skipped for elements. More...

	XMLPREFIX = None
	The XMLPREFIX parameter controls the prefix to be used for the XML namespace that. More...

	XMLSEQUENCE = None
	If the XMLSEQUENCE = 1, then the order of the XML elements must match the. More...

	XMLSUMMARY = None
	The summary fields to be used when an object is referenced are specified. More...

	XMLTYPE = None
	This parameter provides the default XMLTYPE for the class. More...

	XMLUNSWIZZLE = None
	If the XMLUNSWIZZLE parameter is set to 1, then single object. More...

	XMLUSEEMPTYELEMENT = None
	If the XMLUSEEMPTYELEMENT parameter is set to 1, then the empty element shorthand (<tag>) More...

Member Function Documentation

◆ DrawToHTML()

_.Library.Status DrawToHTML	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.Boolean	incell
	)

private

This method outputs the necessary stylesheet information for the HTML report.

Every tag should override this method.

Reimplemented from node.

◆ DrawToXSLFO()

_.Library.Status DrawToXSLFO	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.Boolean	incell
	)

private

This method outputs the necessary stylesheet information for the PDF report.

Every tag should override this method.

Reimplemented from node.

Member Data Documentation

◆ colClass

colClass

col-class: column CSS class or attribute set

◆ colStyle

colStyle

col-style: column CSS style

◆ colWidth

colWidth

col-width: column width

◆ fillOrder

fillOrder

fill-order is used to define how the small multiple is filled by the temporary tree defined by the group which is a collection of

zr:small-multiple XML elements; horizontal means that as elements are encountered, they should fill a small mutiple across rows before moving down columns; vertical means the first column on the small multiple should be filled before moving on to the next. The default is horizontal.

◆ name

name

name: name of small-multiple defaults to "small-multiple".

Must be specified to have more than one on a page.

◆ numcols

numcols

num-cols: number of columns in table holding small multiple

◆ numrows

numrows

num-rows: number of rows in table holding small multiple

◆ rowClass

rowClass

row-class: row CSS class or attribute-set

◆ rowStyle

rowStyle

row-style: row CSS style

◆ rowWidth

rowWidth

row-width: row width

◆ tableClass

tableClass

table-class: table CSS class or attribute-set

◆ tableStyle

tableStyle

table-style: table CSS style

◆ tableWidth

tableWidth

table-width: table width
