Base class for all nodes in the ReportDisplay XData block. More...

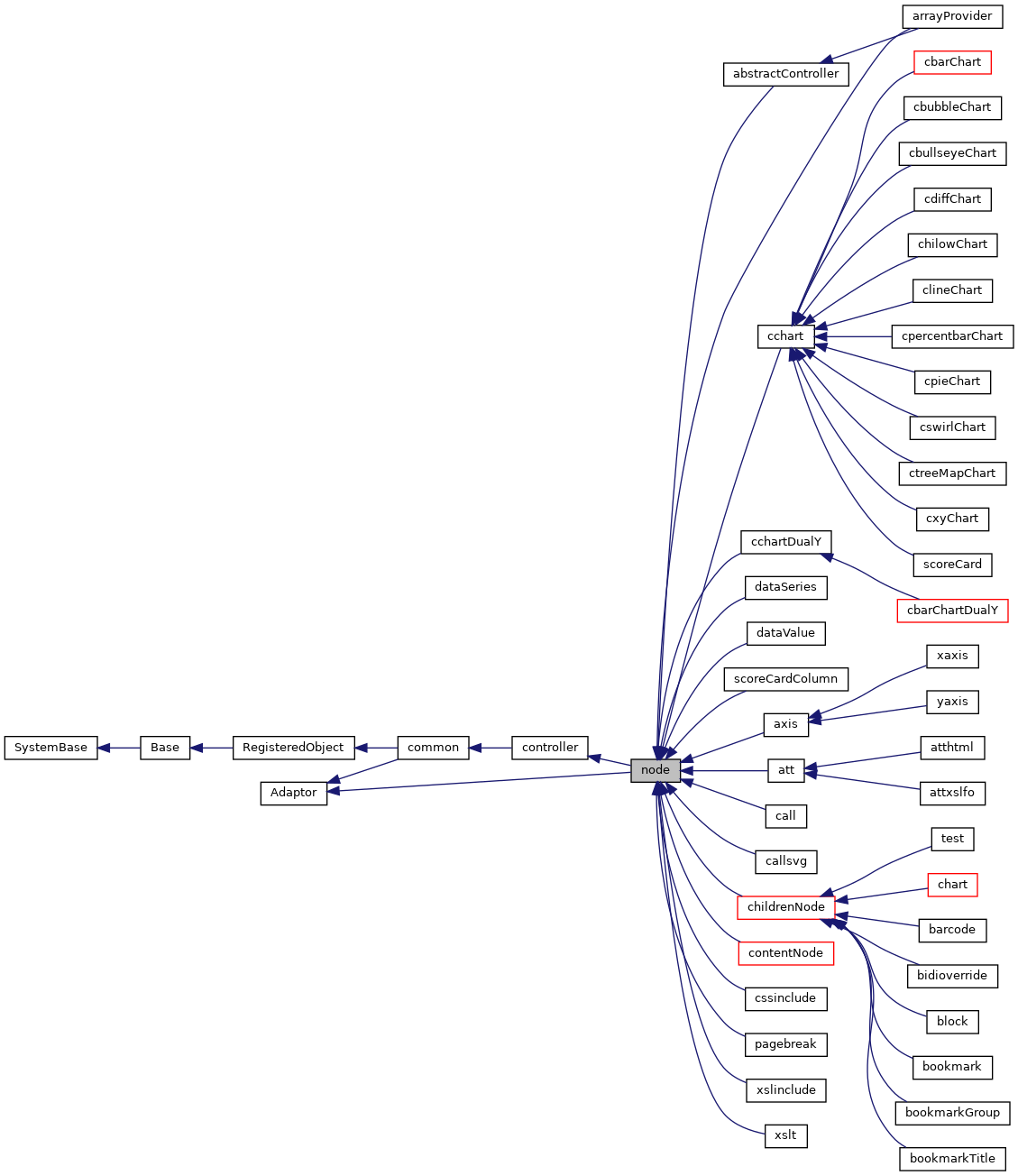

Inheritance diagram for node:

[legend]

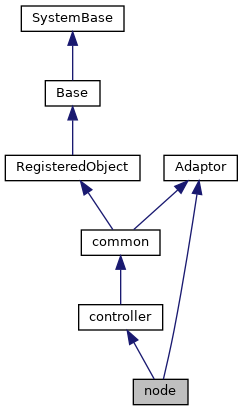

Collaboration diagram for node:

[legend]

Public Attributes
	class
	Specifies the node's style class. More...

	htmlstyle
	same as style only HTML only More...

	level
	use to pass down result set from table when table uses sql to generate itself More...

	selectstylecond
	list of conditions - true one at index i selects style More...

	selectstylelist
	list of styles - picked by first true index i in list of conditions More...

	style
	The style string is given in the form "attribute1:value1;attribute2:value2;...",. More...

	stylecall
	stylecall - name of xsl:template to call to output style attributes More...

	styleparamNames
	for each name here an xsl:with-param is generated with its name attribute set from here More...

	styleparams
	list of xpaths, xpath function calls, and XSLT function calls. More...

	tag
	Calculated property that contains the tag name of the node. More...

	template
	Specifies the template that can be used to add children to the node. More...

	width
	Specifies the width of the element within its containing object (page, table cell, etc.) More...

	withinSmallmultiple
	used to flag table or item, etc., as being under a small mutiple More...

	xmlnamespace
	We use these to record namespace and namespace prefix for qualified name. More...

	xmlnamespaceprefix
	More...

	xpath
	More...

	xslfostyle
	same as style only XSL-FO only More...

Public Attributes inherited from controller
	applyLevel
	More...

	ifexpression
	More...

	ifxpath
	More...

	includeColIfExpression
	More...

	includeColIfXPath
	More...

	includeColUnlessExpression
	More...

	includeColUnlessXPath
	More...

	unlessexpression
	More...

Public Attributes inherited from common
	composite
	@qualifier final For components that are created as part of a composite(template component, More...

	id
	This is a unique identifier that is used to distinguish this object. More...

Static Public Attributes
	NAMESPACE = None
	XML namespace used for Zen Report display definitions.

	XMLIGNOREINVALIDATTRIBUTE = None
	By setting this to 0, we disallow use of invalid attribute names in Zen Report XML documents.

Static Public Attributes inherited from common
	NAMESPACE = None
	XML namespace used for Zen Report display definitions.

	XMLFORMAT = None
	If XMLFORMAT="Literal", then only support for literal format import and export is generated. More...

Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...

	JAVATYPE = None
	The Java type to be used when exported.

	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...

Static Public Attributes inherited from Adaptor
	ATTRIBUTEQUALIFIED = None
	ATTRIBUTEQUALIFIED controls the format of exported XML by controlling whether attributes. More...

	ELEMENTQUALIFIED = None
	ELEMENTQUALIFIED controls the format of exported XML. More...

	NAMESPACE = None
	NAMESPACE specifies the XML namespace to be used when projecting the. More...

	SUPPRESSTYPEPREFIX = None
	SUPPRESSTYPEPREFIX allows the type name that refers to this class. More...

	XMLDEFAULTREFERENCE = None
	XMLDEFAULTREFERENCE specifies the default value of the XMLREFERENCE property parameter. More...

	XMLENABLED = None
	If this parameter is true then XML-enabling methods. More...

	XMLFORMAT = None
	The XMLFORMAT parameter controls the generation of the XMLExport and XMLImport. More...

	XMLIGNOREINVALIDATTRIBUTE = None
	The XMLIGNOREINVALIDATTRIBUTE parameter allows the programmer to control handling of unexpected. More...

	XMLIGNOREINVALIDTAG = None
	The XMLIGNOREINVALIDTAG parameter allows the programmer to control handling of unexpected. More...

	XMLIGNORENULL = None
	XMLIGNORENULL allows the programmer to override the default XML handling. More...

	XMLINCLUDEINGROUP = None
	XMLINCLUDEINGROUP allows the programmer to control whether a class is included. More...

	XMLINHERITANCE = None
	If the XMLINHERITANCE parameter is set to "LEFT", then in the case of multiple. More...

	XMLNAME = None
	This parameter provides the default XMLNAME for the class. More...

	XMLNIL = None
	The XMLNIL class parameter controls the use of xsi:nil by XMLExport. More...

	XMLNILNOOBJECT = None
	The XMLNILNOOBJECT parameter allows creation of an object to be skipped for elements. More...

	XMLPREFIX = None
	The XMLPREFIX parameter controls the prefix to be used for the XML namespace that. More...

	XMLSEQUENCE = None
	If the XMLSEQUENCE = 1, then the order of the XML elements must match the. More...

	XMLSUMMARY = None
	The summary fields to be used when an object is referenced are specified. More...

	XMLTYPE = None
	This parameter provides the default XMLTYPE for the class. More...

	XMLUNSWIZZLE = None
	If the XMLUNSWIZZLE parameter is set to 1, then single object. More...

	XMLUSEEMPTYELEMENT = None
	If the XMLUSEEMPTYELEMENT parameter is set to 1, then the empty element shorthand (<tag>) More...

Private Member Functions
_.Library.Status	DrawToAnnotatedXML (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay)
	This method outputs the stylesheet that converts the input xml to the xml with Excel annotations. More...

_.Library.Status	DrawToHTML (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.Boolean incell)
	This method outputs the necessary stylesheet information for the HTML report. More...

_.Library.Status	DrawToXSLFO (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.Boolean incell)
	This method outputs the necessary stylesheet information for the PDF report. More...

Additional Inherited Members
Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...

_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...

_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...

_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...

_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...

Public Member Functions inherited from Adaptor
_.Library.Status	XMLExport (_.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent, _.Library.Boolean local, _.Net.MIMEPart mimeAttachments)
	Serialize an XML enabled class as an XML document and write. More...

_.Library.Status	XMLExportToStream (_.Stream.Object export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and appends it to a stream. More...

_.Library.Status	XMLExportToString (_.Library.String export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and write it to a string. More...

Static Public Member Functions inherited from Adaptor
_.Library.Status	XMLDTD (_.Library.String top, _.Library.String format, _.Library.Boolean input, dtdlist)
	Write the DTD to the current device for this XML enabled class serialized as. More...

_.Library.RegisteredObject	XMLNew (_.XML.Document document, _.Library.Integer node, _.Library.RegisteredObject containerOref)
	Get an instance of an XML enabled class. More...

_.Library.Status	XMLSchema (_.Library.String top, _.Library.String format, _.Library.String namespacePrefix, _.Library.Boolean input, _.Library.Boolean refOnly, schema)
	Write an XML Schema fragment to the current device which describes an XML enabled class and dependent classes. More...

_.Library.String	XMLSchemaNamespace ()
	Get the namespace to which this class belongs for use in schema generation. More...

_.Library.Status	XMLSchemaType (_.XML.Schema schemaInstance, _.XML.Node node, _.Library.String top, _.Library.Boolean encoded, _.Library.Boolean summary, _.Library.Boolean input, _.Library.Boolean refOnly)
	Add a complexType to the schema that is respresented by an <class>XML.Schema</class> instance. More...

Detailed Description

Base class for all nodes in the ReportDisplay XData block.

Member Function Documentation

◆ DrawToAnnotatedXML()

_.Library.Status DrawToAnnotatedXML	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay
	)

private

This method outputs the stylesheet that converts the input xml to the xml with Excel annotations.

report, table and item should override this method. Nested tables not supported.

Reimplemented in tr, table, report, item, and childrenNode.

◆ DrawToHTML()

_.Library.Status DrawToHTML	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.Boolean	incell
	)

private

This method outputs the necessary stylesheet information for the HTML report.

Every tag should override this method.

Reimplemented in cchartDualY, cchart, arrayProvider, xslt, xslinclude, write, tr, timeline, thead, th, tfoot, td, tbody, smallMultiple, pagestartsidebar, pagemaster, pageheader, pagefooter, pageendsidebar, pagebreak, p, masterreference, list, link, line, item, inlinecontainer, inline, init, imgSVG, img, html, group, foblock, fo, div, cssinclude, container, class, category, callsvg, call, br, block, bidioverride, and barcode.

◆ DrawToXSLFO()

_.Library.Status DrawToXSLFO	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.Boolean	incell
	)

private

This method outputs the necessary stylesheet information for the PDF report.

Every tag should override this method.

Reimplemented in cchartDualY, cchart, arrayProvider, xslt, xslinclude, write, valueof, tr, timeline, thead, th, tfoot, td, tbody, table, smallMultiple, pagestartsidebar, pagemaster, pageheader, pagefooter, pageendsidebar, pagebreak, p, list, link, line, inlinecontainer, inline, init, imgSVG, img, group, foblock, fo, cssinclude, container, class, category, callsvg, call, br, bookmarkTree, body, and bidioverride.

Member Data Documentation

◆ class

class

Specifies the node's style class.

Some classes come pre-defined when standard styling

is specified for the report, and custom classes may be define by the <class> tag within the <document> tag. Note: parent tags propagate their class attribute to their children if the child class does not have an explicit class defined. In HTML tags, class is rendered using the class attribtue, and in XSL-FO tags it is rendered using the xsl:use-attribute-set attribute. It is a fatal error to specify a class that is not defined. For more information on classes, see the <class> tag.

◆ htmlstyle

htmlstyle

same as style only HTML only

◆ level

level

use to pass down result set from table when table uses sql to generate itself

◆ selectstylecond

selectstylecond

list of conditions - true one at index i selects style

◆ selectstylelist

selectstylelist

list of styles - picked by first true index i in list of conditions

for more information about individual values in list see style property

◆ style

style

The style string is given in the form "attribute1:value1;attribute2:value2;...",.

just as in CSS. In general, the style string is directly copied into HTML tags as the style attribute. In XSL-FO, each attribute is rendered separately. That is, the resulting HTML tag would look like <tag style='attribute1:value1;...'/> and the resulting XSL-FO tag would look like <tag attribute1='value1' ... />.

◆ stylecall

stylecall

stylecall - name of xsl:template to call to output style attributes

◆ styleparamNames

styleparamNames

for each name here an xsl:with-param is generated with its name attribute set from here

◆ styleparams

styleparams

list of xpaths, xpath function calls, and XSLT function calls.

for each string here an xsl:with-param is generated with its select attribute set from here

◆ tag

tag

Calculated property that contains the tag name of the node.

This corresponds to the classname.

◆ template

template

Specifies the template that can be used to add children to the node.

The format is <classname>:<xdata-name>

◆ width

width

Specifies the width of the element within its containing object (page, table cell, etc.)

◆ withinSmallmultiple

withinSmallmultiple

used to flag table or item, etc., as being under a small mutiple

◆ xmlnamespace

xmlnamespace

We use these to record namespace and namespace prefix for qualified name.

◆ xmlnamespaceprefix

xmlnamespaceprefix

◆ xpath

xpath

◆ xslfostyle

xslfostyle

same as style only XSL-FO only
