Configuration Class Reference

Static configuration elements for the destination system. More...

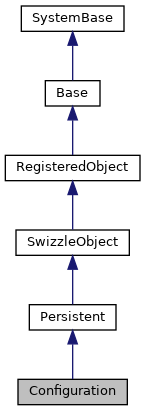

Inheritance diagram for Configuration:

Collaboration diagram for Configuration:

Public Member Functions
_.Library.Status	ImportFromShadowDestination (_.Library.String shadowname)
	Resets this configuration based on the shadow configuration specified. More...

Public Attributes
	DBXMap
	Mapping from source database paths to destination database paths. More...
	Host
	Hostname or IP address of source system. More...
	PauseCheckingBackupWhenNotActive
	For DataCheck configured to check a mirror, pause DataCheck if either. More...
	Port
	Port of source system. More...
	PrimarySourceRequirement
	For DataCheck configured to check a mirror, sets requirements about the state. More...
	SSLConfig
	Optional name of SSL configuration to use for secure connection. More...
	SourceMirrorMember
	Mirror member to connect to. More...
	SystemName
	Name of the DataCheck Destination system that uses this object. More...

Detailed Description

Static configuration elements for the destination system.

An instance of this class is referenced by each <CLASS>Destination</CLASS> object. The Configuration object cannot be changed while the system is running. The configuration elements in this are primary concerned with defining the source system to connect to. The <CLASS>RunParameters</CLASS> defines the performance characteristics and what should be checked, and <CLASS>Workflow</CLASS> defines the strategy for performing the check.

Member Function Documentation

ImportFromShadowDestination()

_.Library.Status ImportFromShadowDestination

(

_.Library.String

shadowname

)

Resets this configuration based on the shadow configuration specified.

by 'shadowname'.

Member Data Documentation

DBXMap

DBXMap

Mapping from source database paths to destination database paths.

Keyed by source database path; value is destination database path. Not used when DataCheck is configured to check a mirror.

Host

Host

Hostname or IP address of source system.

Not used when DataCheck is configured to check a mirror

PauseCheckingBackupWhenNotActive

PauseCheckingBackupWhenNotActive

For DataCheck configured to check a mirror, pause DataCheck if either.

the source or the destination system is the backup failover member and the backup is not marked as active.

Port

Port

Port of source system.

Not used when DataCheck is configured to check a mirror

PrimarySourceRequirement

PrimarySourceRequirement

For DataCheck configured to check a mirror, sets requirements about the state.

of the <property>SourceMirrorMember</property> -1 - Wait until SourceMirrorMember is no longer primary 0 - No Requirement 1 - Wait until SourceMirrorMember is primary

SSLConfig

SSLConfig

Optional name of SSL configuration to use for secure connection.

Not used when DataCheck is configured to check a mirror

SourceMirrorMember

SourceMirrorMember

Mirror member to connect to.

This property is not intended to be changed once created.



SystemName

SystemName

Name of the DataCheck Destination system that uses this object.

Set upon creating the destination object and should not be changed.
