This class provides an interface for ZEN report tags to be displayed in a table. More...

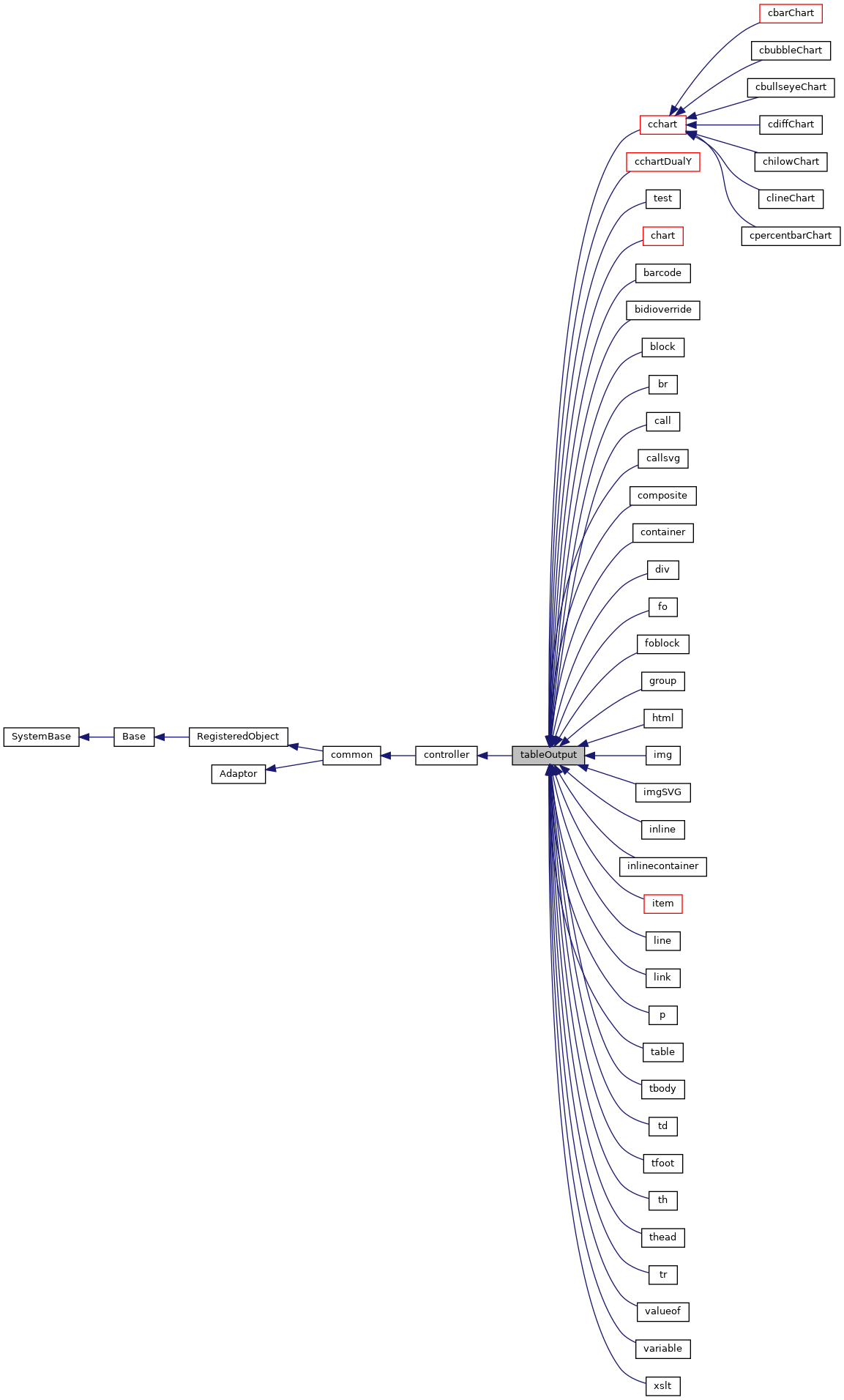

Inheritance diagram for tableOutput:

[legend]

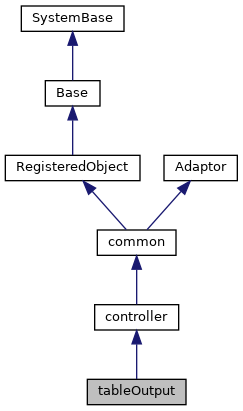

Collaboration diagram for tableOutput:

[legend]

Public Attributes
	blockContainerProperty
	properties of block container such as overflow='hidden' to truncate data too large More...

	caption
	Short-hand property to specify the elements caption within the table's header row. More...

	colcount
	when grouppath is set, the number of columns in the group More...

	colspan
	More...

	crosstabDataGroup
	xpath representing data of cross-tab at row determined by crosstabRowGroup[$row]/ More...

	crosstabFooterDataField
	xpath expression, which can use $pos, to get data to display in crosstab footer group More...

	crosstabFooterFormatNumber
	if non-null has footer data is formatted More...

	crosstabFooterGroup
	xpath representing data that will appear in footer More...

	crosstabHeaderDataField
	Defaults to "". More...

	crosstabHeaderGroup
	cross-tab properties More...

	crosstabHeaderGroupLabels
	cross-tab properties More...

	crosstabHeaderGroupTooLongText
	cross-tab properties More...

	crosstabHeaderLabelDataField
	cross-tab properties More...

	crosstabHeaderMatchField
	xpath representing data that will match against header name crosstabHeaderGroup[$col] More...

	crosstabRowGroup
	xpath representing "row" of table where cross-tab data lives More...

	crosstabTruncationHeight
	the height to use in truncation of cross tab header labels, if not specified inherited from table cell More...

	crosstabTruncationWidth
	the width to use in truncation of cross tab header lablels, if not specified inherited from table cell More...

	foblock
	fo attributes of block for things like orphan control More...

	grouppath
	items and captions can now have groups that allow them to repeat on a line More...

	hasFooter
	Calculated property that indicates whether or not this element specifies a footer cell. More...

	hasHeader
	Calculated property that indicates whether or not this element specifies a header cell. More...

	includeBlockContainer
	Is block wrapped inside a block container. More...

	linefeedTreatment
	More...

	rowspan
	More...

	tooLongText
	More...

	truncate
	truncate text if it is too long if truncate is true More...

	truncationHeight
	the height to use in truncation. More...

	truncationWidth
	the width to use in truncation, if not specified inherited from table cell More...

Public Attributes inherited from controller
	applyLevel
	More...

	ifexpression
	More...

	ifxpath
	More...

	includeColIfExpression
	More...

	includeColIfXPath
	More...

	includeColUnlessExpression
	More...

	includeColUnlessXPath
	More...

	unlessexpression
	More...

Public Attributes inherited from common
	composite
	@qualifier final For components that are created as part of a composite(template component, More...

	id
	This is a unique identifier that is used to distinguish this object. More...

Private Member Functions
_.Library.Status	DrawCellFO1 (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay)
	Part of the tableOutput API that displays the element contained in a table cell for. More...

_.Library.Status	DrawCellToHTML (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.String orient)
	Part of the tableOutput API that displays the element contained in a table cell for. More...

_.Library.Status	DrawFooterFO (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.Boolean oldSummary, _.Library.String orient)

_.Library.Status	DrawFooterToAnnotatedXML (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay)

_.Library.Status	DrawFooterToHTML (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.Boolean oldSummary, _.Library.String orient)

_.Library.Status	DrawHeaderFO (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.String orient)

_.Library.Status	DrawHeaderToHTML (_.Library.String context, _.Library.GlobalCharacterStream XSL, _.Library.GlobalCharacterStream delay, _.Library.String orient)

	FooterWidth ()
	Returns the width of the footer cell for this object.

	HeaderWidth ()
	Returns the width of the header cell for this object.

	OldWidth ()
	Returns the width of the cell containing this object.

	Width ()
	Returns the width of the cell containing this object.

Additional Inherited Members
Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...

_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...

_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...

_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...

_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...

Public Member Functions inherited from Adaptor
_.Library.Status	XMLExport (_.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent, _.Library.Boolean local, _.Net.MIMEPart mimeAttachments)
	Serialize an XML enabled class as an XML document and write. More...

_.Library.Status	XMLExportToStream (_.Stream.Object export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and appends it to a stream. More...

_.Library.Status	XMLExportToString (_.Library.String export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and write it to a string. More...

Static Public Member Functions inherited from Adaptor
_.Library.Status	XMLDTD (_.Library.String top, _.Library.String format, _.Library.Boolean input, dtdlist)
	Write the DTD to the current device for this XML enabled class serialized as. More...

_.Library.RegisteredObject	XMLNew (_.XML.Document document, _.Library.Integer node, _.Library.RegisteredObject containerOref)
	Get an instance of an XML enabled class. More...

_.Library.Status	XMLSchema (_.Library.String top, _.Library.String format, _.Library.String namespacePrefix, _.Library.Boolean input, _.Library.Boolean refOnly, schema)
	Write an XML Schema fragment to the current device which describes an XML enabled class and dependent classes. More...

_.Library.String	XMLSchemaNamespace ()
	Get the namespace to which this class belongs for use in schema generation. More...

_.Library.Status	XMLSchemaType (_.XML.Schema schemaInstance, _.XML.Node node, _.Library.String top, _.Library.Boolean encoded, _.Library.Boolean summary, _.Library.Boolean input, _.Library.Boolean refOnly)
	Add a complexType to the schema that is respresented by an <class>XML.Schema</class> instance. More...

Static Public Attributes inherited from common
	NAMESPACE = None
	XML namespace used for Zen Report display definitions.

	XMLFORMAT = None
	If XMLFORMAT="Literal", then only support for literal format import and export is generated. More...

Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...

	JAVATYPE = None
	The Java type to be used when exported.

	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...

Static Public Attributes inherited from Adaptor
	ATTRIBUTEQUALIFIED = None
	ATTRIBUTEQUALIFIED controls the format of exported XML by controlling whether attributes. More...

	ELEMENTQUALIFIED = None
	ELEMENTQUALIFIED controls the format of exported XML. More...

	NAMESPACE = None
	NAMESPACE specifies the XML namespace to be used when projecting the. More...

	SUPPRESSTYPEPREFIX = None
	SUPPRESSTYPEPREFIX allows the type name that refers to this class. More...

	XMLDEFAULTREFERENCE = None
	XMLDEFAULTREFERENCE specifies the default value of the XMLREFERENCE property parameter. More...

	XMLENABLED = None
	If this parameter is true then XML-enabling methods. More...

	XMLFORMAT = None
	The XMLFORMAT parameter controls the generation of the XMLExport and XMLImport. More...

	XMLIGNOREINVALIDATTRIBUTE = None
	The XMLIGNOREINVALIDATTRIBUTE parameter allows the programmer to control handling of unexpected. More...

	XMLIGNOREINVALIDTAG = None
	The XMLIGNOREINVALIDTAG parameter allows the programmer to control handling of unexpected. More...

	XMLIGNORENULL = None
	XMLIGNORENULL allows the programmer to override the default XML handling. More...

	XMLINCLUDEINGROUP = None
	XMLINCLUDEINGROUP allows the programmer to control whether a class is included. More...

	XMLINHERITANCE = None
	If the XMLINHERITANCE parameter is set to "LEFT", then in the case of multiple. More...

	XMLNAME = None
	This parameter provides the default XMLNAME for the class. More...

	XMLNIL = None
	The XMLNIL class parameter controls the use of xsi:nil by XMLExport. More...

	XMLNILNOOBJECT = None
	The XMLNILNOOBJECT parameter allows creation of an object to be skipped for elements. More...

	XMLPREFIX = None
	The XMLPREFIX parameter controls the prefix to be used for the XML namespace that. More...

	XMLSEQUENCE = None
	If the XMLSEQUENCE = 1, then the order of the XML elements must match the. More...

	XMLSUMMARY = None
	The summary fields to be used when an object is referenced are specified. More...

	XMLTYPE = None
	This parameter provides the default XMLTYPE for the class. More...

	XMLUNSWIZZLE = None
	If the XMLUNSWIZZLE parameter is set to 1, then single object. More...

	XMLUSEEMPTYELEMENT = None
	If the XMLUSEEMPTYELEMENT parameter is set to 1, then the empty element shorthand (<tag>) More...

Detailed Description

This class provides an interface for ZEN report tags to be displayed in a table.

Any tag that will be embedded in a table must extend tableOutput.

When a class that does not implement the "children" property extends tableOutput, it must introduce a children property with XMLPROJECTION="none." See the <p> tag for an example.
When a class that does not implement the "field" or "group" or "removeEmpty" property extends tableOutput it must introduce a "field" or "group" or "removeEmpty" property with XMLPROJECTION="none"

Member Function Documentation

◆ DrawCellFO1()

_.Library.Status DrawCellFO1	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay
	)

private

Part of the tableOutput API that displays the element contained in a table cell for.

the PDF report.

Reimplemented in caption.

◆ DrawCellToHTML()

_.Library.Status DrawCellToHTML	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.String	orient
	)

private

Part of the tableOutput API that displays the element contained in a table cell for.

the HTML report.

◆ DrawFooterFO()

_.Library.Status DrawFooterFO	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.Boolean	oldSummary,
		_.Library.String	orient
	)

private

Part of the tableOutput API that searches for a <summary> child and if it

finds one renders it (just as an <item> tag) as the row/column's footer.

◆ DrawFooterToAnnotatedXML()

_.Library.Status DrawFooterToAnnotatedXML	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay
	)

private

Part of the tableOutput API that searches for a <summary> child and if it

finds one renders it (just as an <item> tag) as the row/column's footer.

◆ DrawFooterToHTML()

_.Library.Status DrawFooterToHTML	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.Boolean	oldSummary,
		_.Library.String	orient
	)

private

Part of the tableOutput API that searches for a <summary> child and if it

finds one renders it (just as an <item> tag) as the row/column's footer.

◆ DrawHeaderFO()

_.Library.Status DrawHeaderFO	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.String	orient
	)

private

Part of the tableOutput API that searches for a <caption> child and if it

finds one renders it (just as an <item> tag) as the row/column's header.

As a short-hand, one can simply specify the caption attribute for the tag, but that is less flexible.

◆ DrawHeaderToHTML()

_.Library.Status DrawHeaderToHTML	(	_.Library.String	context,
		_.Library.GlobalCharacterStream	XSL,
		_.Library.GlobalCharacterStream	delay,
		_.Library.String	orient
	)

private

Part of the tableOutput API that searches for a <caption> child and if it

finds one renders it (just as an <item> tag) as the row/column's header.

As a short-hand, one can simply specify the caption attribute for the tag, but that is less flexible.

Member Data Documentation

◆ blockContainerProperty

blockContainerProperty

properties of block container such as overflow='hidden' to truncate data too large

◆ caption

caption

Short-hand property to specify the elements caption within the table's header row.

◆ colcount

colcount

when grouppath is set, the number of columns in the group

◆ colspan

colspan

◆ crosstabDataGroup

crosstabDataGroup

xpath representing data of cross-tab at row determined by crosstabRowGroup[$row]/

◆ crosstabFooterDataField

crosstabFooterDataField

xpath expression, which can use $pos, to get data to display in crosstab footer group

◆ crosstabFooterFormatNumber

crosstabFooterFormatNumber

if non-null has footer data is formatted

◆ crosstabFooterGroup

crosstabFooterGroup

xpath representing data that will appear in footer

◆ crosstabHeaderDataField

crosstabHeaderDataField

Defaults to "".

Field (attribute or element) of crosstabHeaderGroup used in constructing match.

◆ crosstabHeaderGroup

crosstabHeaderGroup

cross-tab properties

get headers for cross-tab item from this xpath
used for matching

◆ crosstabHeaderGroupLabels

crosstabHeaderGroupLabels

cross-tab properties

get headers for cross-tab item from this xpath
used for writing header labels

◆ crosstabHeaderGroupTooLongText

crosstabHeaderGroupTooLongText

cross-tab properties

get headers for cross-tab item from this xpath
used for matching

◆ crosstabHeaderLabelDataField

crosstabHeaderLabelDataField

cross-tab properties

get headers for cross-tab item from this xpath
used for writing header labels
relative to crosstabHeaderGroupLabels

◆ crosstabHeaderMatchField

crosstabHeaderMatchField

xpath representing data that will match against header name crosstabHeaderGroup[$col]

◆ crosstabRowGroup

crosstabRowGroup

xpath representing "row" of table where cross-tab data lives

◆ crosstabTruncationHeight

crosstabTruncationHeight

the height to use in truncation of cross tab header labels, if not specified inherited from table cell

◆ crosstabTruncationWidth

crosstabTruncationWidth

the width to use in truncation of cross tab header lablels, if not specified inherited from table cell

◆ foblock

foblock

fo attributes of block for things like orphan control

One would specify foblock="orphans='1'"

◆ grouppath

grouppath

items and captions can now have groups that allow them to repeat on a line

when table draw in orient="col"

◆ hasFooter

hasFooter

Calculated property that indicates whether or not this element specifies a footer cell.

◆ hasHeader

hasHeader

Calculated property that indicates whether or not this element specifies a header cell.

◆ includeBlockContainer

includeBlockContainer

Is block wrapped inside a block container.

◆ linefeedTreatment

linefeedTreatment

◆ rowspan

rowspan

◆ tooLongText

tooLongText

◆ truncate

truncate

truncate text if it is too long if truncate is true

◆ truncationHeight

truncationHeight

the height to use in truncation.

◆ truncationWidth

truncationWidth

the width to use in truncation, if not specified inherited from table cell

Public Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ DrawCellFO1()

◆ DrawCellToHTML()

◆ DrawFooterFO()

◆ DrawFooterToAnnotatedXML()

◆ DrawFooterToHTML()

◆ DrawHeaderFO()

◆ DrawHeaderToHTML()

Member Data Documentation

◆ blockContainerProperty

◆ caption

◆ colcount

◆ colspan

◆ crosstabDataGroup

◆ crosstabFooterDataField

◆ crosstabFooterFormatNumber

◆ crosstabFooterGroup

◆ crosstabHeaderDataField

◆ crosstabHeaderGroup

◆ crosstabHeaderGroupLabels

◆ crosstabHeaderGroupTooLongText

◆ crosstabHeaderLabelDataField

◆ crosstabHeaderMatchField

◆ crosstabRowGroup

◆ crosstabTruncationHeight

◆ crosstabTruncationWidth

◆ foblock

◆ grouppath

◆ hasFooter

◆ hasHeader

◆ includeBlockContainer

◆ linefeedTreatment

◆ rowspan

◆ tooLongText

◆ truncate

◆ truncationHeight

◆ truncationWidth
