This is a "Database" activity within a Manifest document. More...

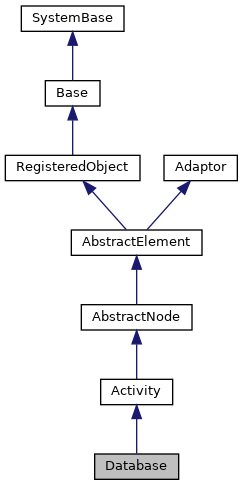

Inheritance diagram for Database:

[legend]

Collaboration diagram for Database:

[legend]

Public Attributes
	BlockSize
	Database block size. More...

	ClusterMountMode
	Specifies whether the database should be mounted privately or clustered. More...

	Collation
	Database collation. More...

	Create
	Database creation flags: More...

	Dir
	Database location on the filesystem. More...

	Encrypted
	Enable encryption for this database. More...

	EncryptionKeyID
	The encryption key id for an encrypted database. More...

	ExpansionSize
	Expansion size (i.e. More...

	InitialSize
	Initial database size (in MB) More...

	MaximumSize
	Maximum database size (in MB) More...

	MountAtStartup
	Specifies whether the database should be mounted at startup. More...

	MountRequired
	Specifies that the database MUST be successfully mounted at startup. More...

	PublicPermissions
	Public Permissions, zero or more of "R", "W", "U". More...

	Resource
	Database Resource required to access this database, for example DB_DEFAULT. More...

	StreamLocation
	Directory where the streams associated with this database go. More...

	Target
	Database "logical" name, for example USER or ENSDEMO. More...

Public Attributes inherited from AbstractElement
	name
	This is the logical name of this node. More...

Additional Inherited Members
Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...

_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...

_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...

_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...

_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...

Public Member Functions inherited from Adaptor
_.Library.Status	XMLExport (_.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent, _.Library.Boolean local, _.Net.MIMEPart mimeAttachments)
	Serialize an XML enabled class as an XML document and write. More...

_.Library.Status	XMLExportToStream (_.Stream.Object export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and appends it to a stream. More...

_.Library.Status	XMLExportToString (_.Library.String export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and write it to a string. More...

Static Public Member Functions inherited from Adaptor
_.Library.Status	XMLDTD (_.Library.String top, _.Library.String format, _.Library.Boolean input, dtdlist)
	Write the DTD to the current device for this XML enabled class serialized as. More...

_.Library.RegisteredObject	XMLNew (_.XML.Document document, _.Library.Integer node, _.Library.RegisteredObject containerOref)
	Get an instance of an XML enabled class. More...

_.Library.Status	XMLSchema (_.Library.String top, _.Library.String format, _.Library.String namespacePrefix, _.Library.Boolean input, _.Library.Boolean refOnly, schema)
	Write an XML Schema fragment to the current device which describes an XML enabled class and dependent classes. More...

_.Library.String	XMLSchemaNamespace ()
	Get the namespace to which this class belongs for use in schema generation. More...

_.Library.Status	XMLSchemaType (_.XML.Schema schemaInstance, _.XML.Node node, _.Library.String top, _.Library.Boolean encoded, _.Library.Boolean summary, _.Library.Boolean input, _.Library.Boolean refOnly)
	Add a complexType to the schema that is respresented by an <class>XML.Schema</class> instance. More...

Static Public Attributes inherited from Activity
	NAMESPACE = None
	This is the base class for activities within the document.

Static Public Attributes inherited from AbstractElement
	XGENDOCUMENT = None
	This is the name of the XGEN document class that this node belongs to. More...

	XMLIGNOREINVALIDATTRIBUTE = None
	By setting this to 0, we disallow use of invalid attribute names.

	XMLIGNORENULL = None
	By setting this 1, we ignore the difference between null and empty nodes within XGEN.

Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...

	JAVATYPE = None
	The Java type to be used when exported.

	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...

Static Public Attributes inherited from Adaptor
	ATTRIBUTEQUALIFIED = None
	ATTRIBUTEQUALIFIED controls the format of exported XML by controlling whether attributes. More...

	ELEMENTQUALIFIED = None
	ELEMENTQUALIFIED controls the format of exported XML. More...

	NAMESPACE = None
	NAMESPACE specifies the XML namespace to be used when projecting the. More...

	SUPPRESSTYPEPREFIX = None
	SUPPRESSTYPEPREFIX allows the type name that refers to this class. More...

	XMLDEFAULTREFERENCE = None
	XMLDEFAULTREFERENCE specifies the default value of the XMLREFERENCE property parameter. More...

	XMLENABLED = None
	If this parameter is true then XML-enabling methods. More...

	XMLFORMAT = None
	The XMLFORMAT parameter controls the generation of the XMLExport and XMLImport. More...

	XMLIGNOREINVALIDATTRIBUTE = None
	The XMLIGNOREINVALIDATTRIBUTE parameter allows the programmer to control handling of unexpected. More...

	XMLIGNOREINVALIDTAG = None
	The XMLIGNOREINVALIDTAG parameter allows the programmer to control handling of unexpected. More...

	XMLIGNORENULL = None
	XMLIGNORENULL allows the programmer to override the default XML handling. More...

	XMLINCLUDEINGROUP = None
	XMLINCLUDEINGROUP allows the programmer to control whether a class is included. More...

	XMLINHERITANCE = None
	If the XMLINHERITANCE parameter is set to "LEFT", then in the case of multiple. More...

	XMLNAME = None
	This parameter provides the default XMLNAME for the class. More...

	XMLNIL = None
	The XMLNIL class parameter controls the use of xsi:nil by XMLExport. More...

	XMLNILNOOBJECT = None
	The XMLNILNOOBJECT parameter allows creation of an object to be skipped for elements. More...

	XMLPREFIX = None
	The XMLPREFIX parameter controls the prefix to be used for the XML namespace that. More...

	XMLSEQUENCE = None
	If the XMLSEQUENCE = 1, then the order of the XML elements must match the. More...

	XMLSUMMARY = None
	The summary fields to be used when an object is referenced are specified. More...

	XMLTYPE = None
	This parameter provides the default XMLTYPE for the class. More...

	XMLUNSWIZZLE = None
	If the XMLUNSWIZZLE parameter is set to 1, then single object. More...

	XMLUSEEMPTYELEMENT = None
	If the XMLUSEEMPTYELEMENT parameter is set to 1, then the empty element shorthand (<tag>) More...

Detailed Description

This is a "Database" activity within a Manifest document.

Member Data Documentation

◆ BlockSize

BlockSize

Database block size.

◆ ClusterMountMode

ClusterMountMode

Specifies whether the database should be mounted privately or clustered.

0 - Mount private
1 - Mount clustered

◆ Collation

Collation

Database collation.

◆ Create

Create

Database creation flags:

yes - Must always create the database, will fail if already exists
no - Database must already exist
overwrite - Overwrite if present, or create a new one.

◆ Dir

Dir

Database location on the filesystem.

◆ Encrypted

Encrypted

Enable encryption for this database.

◆ EncryptionKeyID

EncryptionKeyID

The encryption key id for an encrypted database.

◆ ExpansionSize

ExpansionSize

Expansion size (i.e.

by how many MB should the DB get expanded when it fills)

◆ InitialSize

InitialSize

Initial database size (in MB)

◆ MaximumSize

MaximumSize

Maximum database size (in MB)

◆ MountAtStartup

MountAtStartup

Specifies whether the database should be mounted at startup.

0 - Don't mount at startup
1 - Mount at startup

◆ MountRequired

MountRequired

Specifies that the database MUST be successfully mounted at startup.

0 - Successful mount not required for startup to succeed.
1 - Successful mount required for startup to succeed.

◆ PublicPermissions

PublicPermissions

Public Permissions, zero or more of "R", "W", "U".

◆ Resource

Resource

Database Resource required to access this database, for example DB_DEFAULT.

◆ StreamLocation

StreamLocation

Directory where the streams associated with this database go.

By default (value=""), the location is in the subdirectory "stream", underneath the database directory, e.g. for a database located in c:\abc, the default would be c:\abc\stream. InterSystems recommends leaving this parameter as "".

◆ Target

Target

Database "logical" name, for example USER or ENSDEMO.
