This class represents a PMML model as defined in the PMML XData block of a <class>DeepSee.PMML.Definition</class> class. More...

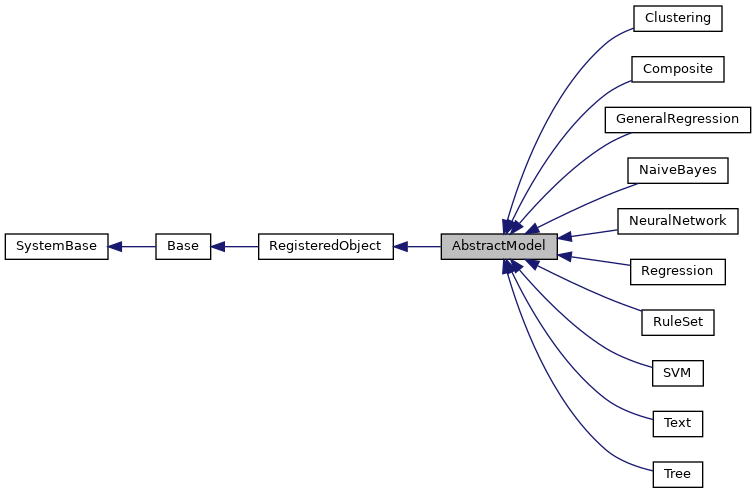

Inheritance diagram for AbstractModel:

[legend]

Collaboration diagram for AbstractModel:

[legend]

Public Member Functions
_.Library.Status	ExecuteModelInternal (_.DeepSee.PMML.ModelInput pInput, _.DeepSee.PMML.ModelOutput pOutput)
	To be implemented by subclasses.

Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...

_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...

_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...

_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...

_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...

Public Attributes
	Tracing
	Whether or not to generate trace information in the output object. More...

Static Public Attributes
	DATACLASS = None
	The name of the root <class>DeepSee.PMML.Data</class> class for this model's PMML definition.

	INPUTCLASS = None
	The name of the <class>DeepSee.PMML.ModelInput</class> class for this model.

	MODELNAME = None
	The name of this model as defined in the PMML definition.

	OUTPUTCLASS = None
	The name of the <class>DeepSee.PMML.ModelOutput</class> class for this model.

	PREDICTEDFIELD = None
	The field in <parameter>DATACLASS</parameter> predicted by this model.

Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...

	JAVATYPE = None
	The Java type to be used when exported.

	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...

Private Member Functions
_.Library.Status	ExecuteModel (_.DeepSee.PMML.Data pData, _.DeepSee.PMML.ModelOutput pOutput)

_.Library.Status	ExecuteModelDeepSee (_.Library.Integer pFactId, _.DeepSee.PMML.ModelOutput pOutput, _.Library.String pDataSource)
	This method runs the model against a fact from the DeepSee fact table of a cube for which. More...

Static Private Member Functions
_.DeepSee.PMML.ModelInput	GetInputObject (_.DeepSee.PMML.Data pData)
	Builds a <class>DeepSee.PMML.ModelInput</class> object based on the root <class>DeepSee.PMML.Data</class> More...

_.Library.String	GetName ()
	Returns the name of this model (similar to <parameter>MODELNAME</parameter>)

_.Library.Status	GetPredictedFieldInfo (_.Library.String pFieldName, _.Library.String pDataType, _.Library.String pOpType)
	Returns basic info about the data field predicted by this model.

Detailed Description

This class represents a PMML model as defined in the PMML XData block of a <class>DeepSee.PMML.Definition</class> class.

Member Function Documentation

◆ ExecuteModel()

_.Library.Status ExecuteModel	(	_.DeepSee.PMML.Data	pData,
		_.DeepSee.PMML.ModelOutput	pOutput
	)

private

Executes this model for a given <class>DeepSee.PMML.Data</class> data object.

As an alternative to providing the actual Data Class (or model input class) for this model, it is also possible to supply a simple array containing the data field values indexed by field name.

See also <class>DeepSee.PMML.Utils</class> for details about running a model against a whole set of records at once, writing the corresponding results to a table.

◆ ExecuteModelDeepSee()

_.Library.Status ExecuteModelDeepSee	(	_.Library.Integer	pFactId,
		_.DeepSee.PMML.ModelOutput	pOutput,
		_.Library.String	pDataSource
	)

private

This method runs the model against a fact from the DeepSee fact table of a cube for which.

an <X-DeepSeeDataSource> element defines a mapping from the cube's measures and dimensions to the Data Fields in the PMML definition. If pDataSource is null, the first DataSource of the model definition is expected to contain this DeepSee-to-PMML mapping.

◆ GetInputObject()

_.DeepSee.PMML.ModelInput GetInputObject ( _.DeepSee.PMML.Data pData )

staticprivate

Builds a <class>DeepSee.PMML.ModelInput</class> object based on the root <class>DeepSee.PMML.Data</class>

for this PMML definition.

Member Data Documentation

◆ Tracing

Tracing

Whether or not to generate trace information in the output object.
