Meta-data for a hierarchy level within a dimension within a DeepSee cube. More...

Inheritance diagram for level:

[legend]

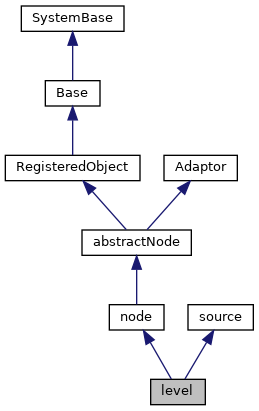

Collaboration diagram for level:

[legend]

Public Member Functions
def	__init__ (self)
	Optional. More...

Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...

_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...

_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...

_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...

_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...

Public Member Functions inherited from Adaptor
_.Library.Status	XMLExport (_.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent, _.Library.Boolean local, _.Net.MIMEPart mimeAttachments)
	Serialize an XML enabled class as an XML document and write. More...

_.Library.Status	XMLExportToStream (_.Stream.Object export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and appends it to a stream. More...

_.Library.Status	XMLExportToString (_.Library.String export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and write it to a string. More...

Static Public Member Functions
_.Library.Status	timeFunctionIsValid (_, val)
	Override default validation to allow for additional time classes.

Static Public Member Functions inherited from Adaptor
_.Library.Status	XMLDTD (_.Library.String top, _.Library.String format, _.Library.Boolean input, dtdlist)
	Write the DTD to the current device for this XML enabled class serialized as. More...

_.Library.RegisteredObject	XMLNew (_.XML.Document document, _.Library.Integer node, _.Library.RegisteredObject containerOref)
	Get an instance of an XML enabled class. More...

_.Library.Status	XMLSchema (_.Library.String top, _.Library.String format, _.Library.String namespacePrefix, _.Library.Boolean input, _.Library.Boolean refOnly, schema)
	Write an XML Schema fragment to the current device which describes an XML enabled class and dependent classes. More...

_.Library.String	XMLSchemaNamespace ()
	Get the namespace to which this class belongs for use in schema generation. More...

_.Library.Status	XMLSchemaType (_.XML.Schema schemaInstance, _.XML.Node node, _.Library.String top, _.Library.Boolean encoded, _.Library.Boolean summary, _.Library.Boolean input, _.Library.Boolean refOnly)
	Add a complexType to the schema that is respresented by an <class>XML.Schema</class> instance. More...

Public Attributes
	castAsNumeric
	If true, the engine will treat the members of this level as numbers. More...

	dependsOn
	If defined, this is an MDX expression identifying another level within this cube. More...

	factNumber
	Define a stable fact number for this level. More...

	hidden
	If true, this level is hidden. More...

	hierarchy
	Hierarchy that this level belongs to. More...

	list
	If true, then the value for this level contains a list of items. More...

	listDelimiter
	Optional. More...

	memberList

	members
	Optional. More...

	nullReplacement
	Optional. More...

	properties
	Set of properties defined for this level. More...

	rangeExpression
	Optional. More...

	sort
	If specified, then use this property to define the default sort order for members of the current level. More...

	useAsFilter
	If true (the default), then this level can be used a filter within a dashboard. More...

	useDisplayValue
	If true, then use the display (external) value of the field (if applicable) in the source. More...

Public Attributes inherited from node
	additionalDescription
	More...

	description
	Optional description for this node. More...

	disabled
	Disabled flag. More...

	displayName
	Localized name of this element. More...

	isModified
	Client marker to track whether or not changes have been made too this item in the current session. More...

	name
	Logical name of this element. More...

Public Attributes inherited from source
	factName
	Optional. More...

	factSelectivity
	Optional. More...

	linkClass
	Optional. More...

	linkProperty
	Optional. More...

	sourceExpression
	Optional expression used to get the value of this member. More...

	sourceProperty
	Name of the property in the source data that provides the. More...

Private Member Functions
_.Library.DynamicAbstractObject	AtScaleExport (_.Library.Status pStatus, _.Library.DynamicAbstractObject pAuxiliaryIndex)
	Produce the structures needed to emit the appropriate JSON and export this item to AtScale.

Additional Inherited Members
Static Public Attributes inherited from abstractNode
	XMLINCLUDEINGROUP = None
	Do not include this class in the XML groupings.

Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...

	JAVATYPE = None
	The Java type to be used when exported.

	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...

Static Public Attributes inherited from Adaptor
	ATTRIBUTEQUALIFIED = None
	ATTRIBUTEQUALIFIED controls the format of exported XML by controlling whether attributes. More...

	ELEMENTQUALIFIED = None
	ELEMENTQUALIFIED controls the format of exported XML. More...

	NAMESPACE = None
	NAMESPACE specifies the XML namespace to be used when projecting the. More...

	SUPPRESSTYPEPREFIX = None
	SUPPRESSTYPEPREFIX allows the type name that refers to this class. More...

	XMLDEFAULTREFERENCE = None
	XMLDEFAULTREFERENCE specifies the default value of the XMLREFERENCE property parameter. More...

	XMLENABLED = None
	If this parameter is true then XML-enabling methods. More...

	XMLFORMAT = None
	The XMLFORMAT parameter controls the generation of the XMLExport and XMLImport. More...

	XMLIGNOREINVALIDATTRIBUTE = None
	The XMLIGNOREINVALIDATTRIBUTE parameter allows the programmer to control handling of unexpected. More...

	XMLIGNOREINVALIDTAG = None
	The XMLIGNOREINVALIDTAG parameter allows the programmer to control handling of unexpected. More...

	XMLIGNORENULL = None
	XMLIGNORENULL allows the programmer to override the default XML handling. More...

	XMLINCLUDEINGROUP = None
	XMLINCLUDEINGROUP allows the programmer to control whether a class is included. More...

	XMLINHERITANCE = None
	If the XMLINHERITANCE parameter is set to "LEFT", then in the case of multiple. More...

	XMLNAME = None
	This parameter provides the default XMLNAME for the class. More...

	XMLNIL = None
	The XMLNIL class parameter controls the use of xsi:nil by XMLExport. More...

	XMLNILNOOBJECT = None
	The XMLNILNOOBJECT parameter allows creation of an object to be skipped for elements. More...

	XMLPREFIX = None
	The XMLPREFIX parameter controls the prefix to be used for the XML namespace that. More...

	XMLSEQUENCE = None
	If the XMLSEQUENCE = 1, then the order of the XML elements must match the. More...

	XMLSUMMARY = None
	The summary fields to be used when an object is referenced are specified. More...

	XMLTYPE = None
	This parameter provides the default XMLTYPE for the class. More...

	XMLUNSWIZZLE = None
	If the XMLUNSWIZZLE parameter is set to 1, then single object. More...

	XMLUSEEMPTYELEMENT = None
	If the XMLUSEEMPTYELEMENT parameter is set to 1, then the empty element shorthand (<tag>) More...

Detailed Description

Meta-data for a hierarchy level within a dimension within a DeepSee cube.

Constructor & Destructor Documentation

◆ init()

def __init__ ( self )

Optional.

If defined, this is a comma-delimited list of the members that

are to be displayed for this level in the given order.
This is deprecated in favor of the <property>members</property> collection.

Reimplemented from node.

Member Data Documentation

◆ castAsNumeric

castAsNumeric

If true, the engine will treat the members of this level as numbers.

◆ dependsOn

dependsOn

If defined, this is an MDX expression identifying another level within this cube.

that this level depends on, e.g., "[Outlet].[H1].[City]"
This causes the following changes to this cube.

An additional index is created based on the "master" level's fact and this level's fact.
When the set of members for this level is produced it is filtered using this index.

◆ factNumber

factNumber

Define a stable fact number for this level.

◆ hidden

hidden

If true, this level is hidden.

That is, it will not be listed among the

cube's members within the various DeepSee utilities.
It can still be used within MDX queries and expressions.

◆ hierarchy

hierarchy

Hierarchy that this level belongs to.

◆ list

list

If true, then the value for this level contains a list of items.

Each

distinct item is treated as a member of this level.
By default the list consists of a $List of items. You can also use a character-delimited list by setting the <property>listDelimiter</property> attribute.
A <property>nullReplacement</property> for a list property is applied when the entire list is missing. Missing elements within a list are simply ignored.

◆ listDelimiter

listDelimiter

Optional.

If the <property>list</property> attribute for this level is true, then

setting this will cause the list to be interpreted as a character delimited value using this attribute as the delimiter character.

◆ memberList

memberList

Deprecated:

◆ members

members

Optional.

Set of explicitly defined members for this level.

If defined, this is a list of the members that are to be displayed for this level in the given order.

◆ nullReplacement

nullReplacement

Optional.

If defined, this is used as the display value for

any members of this level whose value is null (missing).
If not defined, then missing members will not be listed by queries.
This cannot be used for levels within time dimensions or for levels that contain a list of values (see <property>list</property>).

◆ properties

properties

Set of properties defined for this level.

◆ rangeExpression

rangeExpression

Optional.

If defined, this contains a range expression that transforms incoming

values according to a set of range conditions.
A range condition is a string containing one or more range conditions. Each condition has a test value and a replacement value of the form "test:replace;" A test value can contain a single value or a range. A range is enclosed with () (exclusive) or [] (inclusive).
For example:
"(,0]:Below Normal;(0,100):Normal;[100,):Above Normal;" This cannot be used for levels within time dimensions or for levels that contain a list of values (see <property>list</property>).
Range expressions are applied before null value substitution.
Values that do not match any range condition are converted to null.

◆ sort

sort

If specified, then use this property to define the default sort order for members of the current level.

The value can be "asc" for ascending order, "desc" for descending order, "asc numeric" for ascending numeric order, or "desc numeric" for descending numeric order.
For more precise control, you can specify sort order within the property definitions associated with this level.

◆ useAsFilter

useAsFilter

If true (the default), then this level can be used a filter within a dashboard.

If false,

it is still visible to the Analyzer, but is not listed as a choice for a widget filter.
This has no effect on the operation of the cube.

◆ useDisplayValue

useDisplayValue

If true, then use the display (external) value of the field (if applicable) in the source.

table when fetching data for this level.
This is only applied for levels that specify a <property>sourceProperty</property>.
