subjectArea Class Reference

Meta-data object for a DeepSee subjectArea. More...

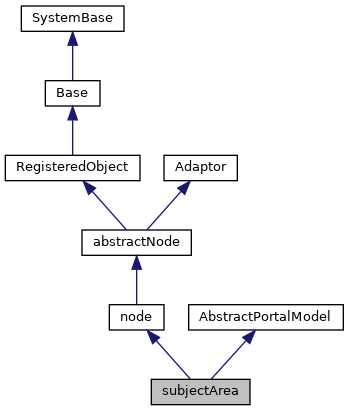

Inheritance diagram for subjectArea:

Collaboration diagram for subjectArea:

Public Attributes
	baseCube
	Name of the cube(s) this subject area is based on. More...
	calculatedMembers
	Calculated members defined for this subject area. More...
	caption
	This is used as the caption text when utilities display this subject area. More...
	connectsBy
	If this is a "compound cube" then this is a csv list of zero or more shared dimension levels. More...
	countMeasureCaption
	Optional. More...
	countMeasureName
	Optional. More...
	defaultListing
	Optional. More...
	defaultMeasure
	Optional. More...
	defaultMember
	Optional. More...
	dimensions
	Dimensions defined for this subject area. More...
	disableListingGroups
	This setting controls whether the subject area will accept the use of Listing Groups. More...
	filterSpec
	Optional. More...
	listings
	Listings defined for this subject area. More...
	measures
	Measures defined for this subject area. More...
	namedSets
	Named sets defined for this subject area. More...
	owner
	This is the user name of the owner of this subject area. More...
	relationships
	Relationships defined for this subject area. More...
	resource
	The resource needed to view or edit this cube: More...
Public Attributes inherited from node
	description
	Optional description for this node. More...
	disabled
	Disabled flag. More...
	displayName
	Localized name of this element. More...
	name
	Logical name of this element. More...
Public Attributes inherited from AbstractPortalModel
	ReadOnly
	Flag to indicate whether the current object should be handled in ReadOnly mode. More...
	Timestamp
	The most recent time that the underlying class definition was changed. More...

Private Member Functions
_.Library.Status	Validate ()
	Validate this model for logical errors.

Additional Inherited Members
Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...
_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...
_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...
_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...
_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...
Public Member Functions inherited from Adaptor
_.Library.Status	XMLExport (_.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent, _.Library.Boolean local, _.Net.MIMEPart mimeAttachments)
	Serialize an XML enabled class as an XML document and write. More...
_.Library.Status	XMLExportToStream (_.Stream.Object export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and appends it to a stream. More...
_.Library.Status	XMLExportToString (_.Library.String export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and write it to a string. More...
Static Public Member Functions inherited from Adaptor
_.Library.Status	XMLDTD (_.Library.String top, _.Library.String format, _.Library.Boolean input, dtdlist)
	Write the DTD to the current device for this XML enabled class serialized as. More...
_.Library.RegisteredObject	XMLNew (_.XML.Document document, _.Library.Integer node, _.Library.RegisteredObject containerOref)
	Get an instance of an XML enabled class. More...
_.Library.Status	XMLSchema (_.Library.String top, _.Library.String format, _.Library.String namespacePrefix, _.Library.Boolean input, _.Library.Boolean refOnly, schema)
	Write an XML Schema fragment to the current device which describes an XML enabled class and dependent classes. More...
_.Library.String	XMLSchemaNamespace ()
	Get the namespace to which this class belongs for use in schema generation. More...
_.Library.Status	XMLSchemaType (_.XML.Schema schemaInstance, _.XML.Node node, _.Library.String top, _.Library.Boolean encoded, _.Library.Boolean summary, _.Library.Boolean input, _.Library.Boolean refOnly)
	Add a complexType to the schema that is respresented by an <class>XML.Schema</class> instance. More...
Static Public Attributes inherited from abstractNode
	XMLINCLUDEINGROUP = None
	Do not include this class in the XML groupings.
Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...
	JAVATYPE = None
	The Java type to be used when exported.
	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...
Static Public Attributes inherited from Adaptor
	ATTRIBUTEQUALIFIED = None
	ATTRIBUTEQUALIFIED controls the format of exported XML by controlling whether attributes. More...
	ELEMENTQUALIFIED = None
	ELEMENTQUALIFIED controls the format of exported XML. More...
	NAMESPACE = None
	NAMESPACE specifies the XML namespace to be used when projecting the. More...
	SUPPRESSTYPEPREFIX = None
	SUPPRESSTYPEPREFIX allows the type name that refers to this class. More...
	XMLDEFAULTREFERENCE = None
	XMLDEFAULTREFERENCE specifies the default value of the XMLREFERENCE property parameter. More...
	XMLENABLED = None
	If this parameter is true then XML-enabling methods. More...
	XMLFORMAT = None
	The XMLFORMAT parameter controls the generation of the XMLExport and XMLImport. More...
	XMLIGNOREINVALIDATTRIBUTE = None
	The XMLIGNOREINVALIDATTRIBUTE parameter allows the programmer to control handling of unexpected. More...
	XMLIGNOREINVALIDTAG = None
	The XMLIGNOREINVALIDTAG parameter allows the programmer to control handling of unexpected. More...
	XMLIGNORENULL = None
	XMLIGNORENULL allows the programmer to override the default XML handling. More...
	XMLINCLUDEINGROUP = None
	XMLINCLUDEINGROUP allows the programmer to control whether a class is included. More...
	XMLINHERITANCE = None
	If the XMLINHERITANCE parameter is set to "LEFT", then in the case of multiple. More...
	XMLNAME = None
	This parameter provides the default XMLNAME for the class. More...
	XMLNIL = None
	The XMLNIL class parameter controls the use of xsi:nil by XMLExport. More...
	XMLNILNOOBJECT = None
	The XMLNILNOOBJECT parameter allows creation of an object to be skipped for elements. More...
	XMLPREFIX = None
	The XMLPREFIX parameter controls the prefix to be used for the XML namespace that. More...
	XMLSEQUENCE = None
	If the XMLSEQUENCE = 1, then the order of the XML elements must match the. More...
	XMLSUMMARY = None
	The summary fields to be used when an object is referenced are specified. More...
	XMLTYPE = None
	This parameter provides the default XMLTYPE for the class. More...
	XMLUNSWIZZLE = None
	If the XMLUNSWIZZLE parameter is set to 1, then single object. More...
	XMLUSEEMPTYELEMENT = None
	If the XMLUSEEMPTYELEMENT parameter is set to 1, then the empty element shorthand (<tag>) More...

Detailed Description

Meta-data object for a DeepSee subjectArea.

Member Data Documentation

baseCube

baseCube

Name of the cube(s) this subject area is based on.

This may contain a csv list of cubes. If so, then this subjectArea is a "compound cube" that forms the logical union of all the cubes in the list. The first cube is the "primary" base cube.

calculatedMembers

calculatedMembers

Calculated members defined for this subject area.



caption

caption

This is used as the caption text when utilities display this subject area.



connectsBy

connectsBy

If this is a "compound cube" then this is a csv list of zero or more shared dimension levels.

that are used to "join" records between cubes when a query contains a reference to a non-shared dimension.
Each level must include dimension, hierarchy, and level. For example: "[DateOfSale].[H1].[MonthSold]"
This feature can have a serious performance impact and should be used with caution.

countMeasureCaption

countMeasureCaption

Optional.

If defined, this is used as the (localized) display value for

the built-in Count measure.

countMeasureName

countMeasureName

Optional.

If defined, this is used as the logical name for

the built-in Count measure.

defaultListing

defaultListing

Optional.

If specified, this is the name of the listing

(in the <property>listing</property> list) that is used as the default RETURN clause for DRILLTHROUGH queries against this cube.

defaultMeasure

defaultMeasure

Optional.

Name of the default measure for this subject area.

This should simple be the name of a measure within the base cube. This measure is used when no other measure is explicitly in context.

defaultMember

defaultMember

Optional.

Specification of the default member for this subject area.

This is used in queries that do not specify enough axis information to be executed.
This should contain an MDX expression: e.g., "[Product].[All Products]"

dimensions

dimensions

Dimensions defined for this subject area.



disableListingGroups

disableListingGroups

This setting controls whether the subject area will accept the use of Listing Groups.

to define auxiliary listings.

filterSpec

filterSpec

Optional.

This defines a filter applied to this subject area.

This should contain an MDX expression: e.g., "[Product].[Toaster]"

listings

listings

Listings defined for this subject area.



measures

measures

Measures defined for this subject area.



namedSets

namedSets

Named sets defined for this subject area.



owner

owner

This is the user name of the owner of this subject area.

This is used for determining some privileges for this cube.

relationships

relationships

Relationships defined for this subject area.



resource

resource

The resource needed to view or edit this cube:

If defined and the current user holds the USE privilege on this resource, then the user may view (run queries against) this item.
If defined and the current user holds the WRITE privilege on this resource, then the user may modify this item.
