qualityMeasure Class Reference

Meta-data object for a DeepSee Quality Measure. More...

Inheritance diagram for qualityMeasure:

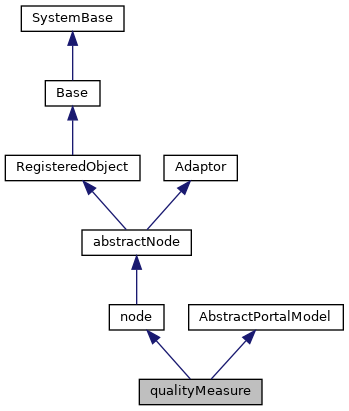

Collaboration diagram for qualityMeasure:

Public Member Functions
_.Library.String	nameGet ()
	Override name property.
Public Member Functions inherited from RegisteredObject
_.Library.Status	OnAddToSaveSet (_.Library.Integer depth, _.Library.Integer insert, _.Library.Integer callcount)
	This callback method is invoked when the current object is added to the SaveSet,. More...
_.Library.Status	OnClose ()
	This callback method is invoked by the <METHOD>Close</METHOD> method to. More...
_.Library.Status	OnConstructClone (_.Library.RegisteredObject object, _.Library.Boolean deep, _.Library.String cloned)
	This callback method is invoked by the <METHOD>ConstructClone</METHOD> method to. More...
_.Library.Status	OnNew ()
	This callback method is invoked by the <METHOD>New</METHOD> method to. More...
_.Library.Status	OnValidateObject ()
	This callback method is invoked by the <METHOD>ValidateObject</METHOD> method to. More...
Public Member Functions inherited from Adaptor
_.Library.Status	XMLExport (_.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent, _.Library.Boolean local, _.Net.MIMEPart mimeAttachments)
	Serialize an XML enabled class as an XML document and write. More...
_.Library.Status	XMLExportToStream (_.Stream.Object export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and appends it to a stream. More...
_.Library.Status	XMLExportToString (_.Library.String export, _.Library.String top, _.Library.String format, _.XML.Namespaces namespaces, attrs, _.Library.String createId, _.Library.String typeAttr, oreflist, idlist, _.Library.String initialIndent)
	Serialize an XML enabled class as an XML document and write it to a string. More...

Public Attributes
	catalog
	Name of catalog this quality measure belongs to. More...
	description
	Brief description of the quality measure. More...
	expression
	Expression used to compute this measure. More...
	format
	Format string to apply to this measure. More...
	groups
	Set of groups defined for this quality measure. More...
	href
	Optional URL of site with additional information. More...
	id
	Id of this quality measure belongs to. More...
	linkedTo
	Optional. More...
	metas
	Set of meta-data elements defined for this quality measure. More...
	published
	True if this quality measure is published (visible to DeepSee). More...
	set
	Name of the measure set (within a catalog) this quality measure belongs to. More...
	subjectArea
	Name of SubjectArea this quality measure is based on. More...
Public Attributes inherited from node
	caption
	Display name of this element. More...
	disabled
	Disabled flag. More...
	name
	Logical name of this element. More...
Public Attributes inherited from AbstractPortalModel
	ReadOnly
	Flag to indicate whether the current object should be handled in ReadOnly mode. More...
	Timestamp
	The most recent time that the underlying class definition was changed. More...

Private Member Functions
_.Library.Status	Validate ()
	Validate this model for logical errors.

Additional Inherited Members
Static Public Member Functions inherited from Adaptor
_.Library.Status	XMLDTD (_.Library.String top, _.Library.String format, _.Library.Boolean input, dtdlist)
	Write the DTD to the current device for this XML enabled class serialized as. More...
_.Library.RegisteredObject	XMLNew (_.XML.Document document, _.Library.Integer node, _.Library.RegisteredObject containerOref)
	Get an instance of an XML enabled class. More...
_.Library.Status	XMLSchema (_.Library.String top, _.Library.String format, _.Library.String namespacePrefix, _.Library.Boolean input, _.Library.Boolean refOnly, schema)
	Write an XML Schema fragment to the current device which describes an XML enabled class and dependent classes. More...
_.Library.String	XMLSchemaNamespace ()
	Get the namespace to which this class belongs for use in schema generation. More...
_.Library.Status	XMLSchemaType (_.XML.Schema schemaInstance, _.XML.Node node, _.Library.String top, _.Library.Boolean encoded, _.Library.Boolean summary, _.Library.Boolean input, _.Library.Boolean refOnly)
	Add a complexType to the schema that is respresented by an <class>XML.Schema</class> instance. More...
Static Public Attributes inherited from abstractNode
	XMLINCLUDEINGROUP = None
	Do not include this class in the XML groupings.
Static Public Attributes inherited from RegisteredObject
	CAPTION = None
	Optional name used by the Form Wizard for a class when generating forms. More...
	JAVATYPE = None
	The Java type to be used when exported.
	PROPERTYVALIDATION = None
	This parameter controls the default validation behavior for the object. More...
Static Public Attributes inherited from Adaptor
	ATTRIBUTEQUALIFIED = None
	ATTRIBUTEQUALIFIED controls the format of exported XML by controlling whether attributes. More...
	ELEMENTQUALIFIED = None
	ELEMENTQUALIFIED controls the format of exported XML. More...
	NAMESPACE = None
	NAMESPACE specifies the XML namespace to be used when projecting the. More...
	SUPPRESSTYPEPREFIX = None
	SUPPRESSTYPEPREFIX allows the type name that refers to this class. More...
	XMLDEFAULTREFERENCE = None
	XMLDEFAULTREFERENCE specifies the default value of the XMLREFERENCE property parameter. More...
	XMLENABLED = None
	If this parameter is true then XML-enabling methods. More...
	XMLFORMAT = None
	The XMLFORMAT parameter controls the generation of the XMLExport and XMLImport. More...
	XMLIGNOREINVALIDATTRIBUTE = None
	The XMLIGNOREINVALIDATTRIBUTE parameter allows the programmer to control handling of unexpected. More...
	XMLIGNOREINVALIDTAG = None
	The XMLIGNOREINVALIDTAG parameter allows the programmer to control handling of unexpected. More...
	XMLIGNORENULL = None
	XMLIGNORENULL allows the programmer to override the default XML handling. More...
	XMLINCLUDEINGROUP = None
	XMLINCLUDEINGROUP allows the programmer to control whether a class is included. More...
	XMLINHERITANCE = None
	If the XMLINHERITANCE parameter is set to "LEFT", then in the case of multiple. More...
	XMLNAME = None
	This parameter provides the default XMLNAME for the class. More...
	XMLNIL = None
	The XMLNIL class parameter controls the use of xsi:nil by XMLExport. More...
	XMLNILNOOBJECT = None
	The XMLNILNOOBJECT parameter allows creation of an object to be skipped for elements. More...
	XMLPREFIX = None
	The XMLPREFIX parameter controls the prefix to be used for the XML namespace that. More...
	XMLSEQUENCE = None
	If the XMLSEQUENCE = 1, then the order of the XML elements must match the. More...
	XMLSUMMARY = None
	The summary fields to be used when an object is referenced are specified. More...
	XMLTYPE = None
	This parameter provides the default XMLTYPE for the class. More...
	XMLUNSWIZZLE = None
	If the XMLUNSWIZZLE parameter is set to 1, then single object. More...
	XMLUSEEMPTYELEMENT = None
	If the XMLUSEEMPTYELEMENT parameter is set to 1, then the empty element shorthand (<tag>) More...

Detailed Description

Meta-data object for a DeepSee Quality Measure.

Member Data Documentation

catalog

catalog

Name of catalog this quality measure belongs to.



description

description

Brief description of the quality measure.



expression

expression

Expression used to compute this measure.

This is an abstract expression based on

groups within this quality measure.

format

format

Format string to apply to this measure.



groups

groups

Set of groups defined for this quality measure.

These are used within the general expression

computed by this measure.

href

href

Optional URL of site with additional information.



id

id

Id of this quality measure belongs to.

Must be unique within the catalog and set.



linkedTo

linkedTo

Optional.

If this is defined, then this is the full name (with no extension)

of a master quality measure that this measure is linked to. In this case, the definition of this measure is completely specified by the definition of the master quality measure.

metas

metas

Set of meta-data elements defined for this quality measure.

These provide documentation for the measure.



published

published

True if this quality measure is published (visible to DeepSee).



set

set

Name of the measure set (within a catalog) this quality measure belongs to.



subjectArea

subjectArea

Name of SubjectArea this quality measure is based on.
