The SYS.X509Credentials class defines the X.509 credentials which consist of an X.509 certificate and an optionally associated private key. More...

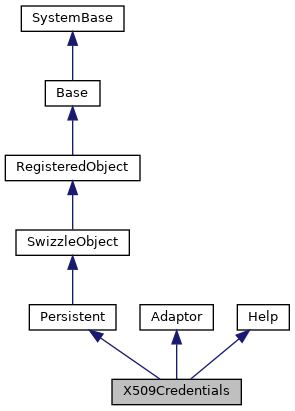

Inheritance diagram for X509Credentials:

[legend]

Collaboration diagram for X509Credentials:

[legend]

Public Member Functions
_.Library.Status	OnValidateObject (_.Library.Boolean ReadOnly)
	Validate the object during save. More...

_.Library.Boolean	CheckPeerName (_.Library.String peerName)
	Check if specified peer name is valid for this set of credentials.

_.Library.Boolean	Equals (_.SYS.X509Credentials credentials)
	Return true if the same credentials – same certificate in this case.

_.Library.Status	LoadCertificate (_.Library.String filename)
	Load a certificate from a certificate file.

_.Library.Status	LoadPrivateKey (_.Library.String filename)
	Load a private key from a private key file.

_.Library.String	RSADecrypt (_.Library.String ciphertext, _.Library.Integer encoding)
	Decrypt using the private key and password for these credentials.

_.Library.String	RSASHASign (_.Library.Integer bitlength, _.Library.String data)
	Sign using the private key and password for these credentials.

_.Library.Integer	RSASize ()
	Find the size of the signature using the private key and password for these credentials.

_.Library.Status	Save ()
	The Save method saves an X509Credentials object. More...

Static Public Member Functions
_.Library.String	BinaryToHexString (_.Library.Binary input)
	Change the binary data (stored in Thumbprint and SubjectKeyIdentifier) into formatted hex string. More...

_.Library.Status	Delete (_.Library.String alias)
	The Delete method deletes an existing X509Credentials object specified by its alias.

_.Library.Boolean	Exists (_.Library.String Name, _.Library.ObjectHandle X509Credential, _.Library.Status Status)
	X509Credential exists. More...

_.Library.Status	Export (_.Library.String FileName, _.Library.Integer NumExported, _.Library.String X509Credentials, _.Library.Boolean IncludePrivateKey)
	This method exports X509Credential records to a file in xml format. More...

_.Library.ListOfObjects	FindByField (_.Library.String fieldName, _.Library.String searchValue, _.Library.ListOfObjects credentialsList)
	Find the SYS.X509Credentials instances which have a match in the specified. More...

_.Library.ListOfObjects	FindByFieldNumber (_.Library.Integer field, _.Library.String searchValue, _.Library.Boolean caseSensitive, _.Library.Boolean contains, _.Library.ListOfObjects credentialsList)
	Internal function to find the SYS.X509Credentials instances which have a match in the specified. More...

_.SYS.X509Credentials	GetByAlias (_.Library.String alias, _.Library.String pwd)
	Get a X.509 credentials record based on the unique alias. More...

_.SYS.X509Credentials	GetByCertificate (_.Library.Binary searchValue)
	Get a X.509 credentials record based on the unique X.509 certificate. More...

_.SYS.X509Credentials	GetByCertificateWithPrivateKey (_.Library.Binary searchValue)
	Get a X.509 credentials record based on the unique X.509 certificate for use with a private key. More...

_.SYS.X509Credentials	GetByRSAKeyValue (_.XML.Security.RSAKeyValue searchValue)
	Get a X.509 credentials record which has a certificate whose. More...

_.SYS.X509Credentials	GetBySubjectKeyIdentifier (_.Library.Binary searchValue)
	Get a X.509 credentials record based on the unique SubjectKeyIdentifier. More...

_.SYS.X509Credentials	GetByThumbprint (_.Library.Binary searchValue)
	Get a X.509 credentials record based on the unique SHA1 Thumbprint. More...

_.SYS.X509Credentials	GetNext (_.Library.String alias)
	Return the next X.509 credentials object that is accessible to. More...

_.Library.Status	GetProperties (_.Library.ObjectHandle X509Credential, _.Library.String Properties)
	Get a X509Credential's properties. More...

_.Library.Status	Import (_.Library.String FileName, _.Library.Integer NumImported, _.Library.Integer Flags)
	Import X509Credential records from an xml file. More...

_.Library.Status	Modify (_.Library.String Name, _.Library.String Properties)
	Modify a X509Credential. More...

_.Library.String	NormalizeDN (_.Library.String name)
	Convert variants of the string representation of a Distinguished Name as defined by. More...

Public Attributes
	Alias
	The Alias is defined on import and identifies the X.509 certificate and private key. More...

	CAFile
	File containing X.509 certificate(s) of trusted Certificate Authorities. More...

	Certificate
	The X.509 certificate. More...

	IssuerDN
	Issuer DistinguishedName of the certificate. More...

	OwnerList
	The optional comma separated list of usernames which may access these credentials. More...

	PeerNames
	PeerNames is an optional comma separated list of peers which expect this. More...

	PrivateKey
	The private key associated with the certificate stored as PEM encoded text. More...

	PrivateKeyPassword
	Optional password for the private key. More...

	PrivateKeyType
	The type of the associated private key. More...

	SerialNumber
	SerialNumber of the certificate – unique for the Issuer. More...

	SubjectDN
	Subject DistinguishedName of the certificate. More...

	SubjectKeyIdentifier
	X.509 SubjectKeyIdentifier from the certificate. More...

	Thumbprint
	SHA1 Thumbprint of the certificate. More...

	ValidityNotAfter
	X.509 ValidityNotAfter from the certificate. More...

	ValidityNotBefore
	X.509 ValidityNotBefore from the certificate. More...

Static Public Attributes
	DOMAIN = None
	The SYS.X509Credentials class defines the X.509 credentials which consist of an X.509 certificate and an optionally associated private key. More...

Detailed Description

The SYS.X509Credentials class defines the X.509 credentials which consist of an X.509 certificate and an optionally associated private key.

An optional OwnerList may be specified to restrict which users have access to these credentials. The normal ObjectScript and SQL methods for accessing this data should not be used and will not work with normal security in order to maintain the security of the credentials.

Member Function Documentation

◆ OnValidateObject()

_.Library.Status OnValidateObject ( _.Library.Boolean ReadOnly )

Validate the object during save.

Note that the PrivateKey property is accessed from memory during save.

◆ BinaryToHexString()

_.Library.String BinaryToHexString ( _.Library.Binary input )

static

Change the binary data (stored in Thumbprint and SubjectKeyIdentifier) into formatted hex string.

Like zzdump, 8-bit strings will be displayed in 1-byte words, ziswide() strings will be displayed in 2-byte words.

◆ Exists()

_.Library.Boolean Exists	(	_.Library.String	Name,
		_.Library.ObjectHandle	X509Credential,
		_.Library.Status	Status
	)

static

X509Credential exists.

This method checks for the existence of a X509Credential in the security database.
Parameters:
Name - Name of the X509Credential to check existence of
Return values:
If Value of the method = 0 (X509Credential does not exist, or some error occurred)
X509Credential = Null
Status = X509Credential "x" does not exist, or other error message<br>
If Value of the method = 1 (X509Credential exists)
X509Credential = Object handle to X509Credential
Status = $$$OK

◆ Export()

_.Library.Status Export	(	_.Library.String	FileName,
		_.Library.Integer	NumExported,
		_.Library.String	X509Credentials,
		_.Library.Boolean	IncludePrivateKey
	)

static

This method exports X509Credential records to a file in xml format.

Parameters:
Filename - Output file name
NumExported (byref) - Returns number of records exported.
X509Credentials - Comma separated list of X509Credentials to export, "*" = All
IncludePrivateKey - boolean value. If 1 (true), then the private key and password will be included in the export file, otherwise it will be omitted. It is the responsibility of the caller to secure the resulting file.

◆ FindByField()

_.Library.ListOfObjects FindByField	(	_.Library.String	fieldName,
		_.Library.String	searchValue,
		_.Library.ListOfObjects	credentialsList
	)

static

Find the SYS.X509Credentials instances which have a match in the specified.

field to the specified value. If the credentialsList property is specified, then only matches from this list are returned. Otherwise all matches from the database are returned.
The following searches are supported: Alias - Unique, exact match on the Alias Certificate - Unique, exact match on the certificate SubjectKeyIdentifier - Unique, exact match to the SubjectKeyIdentifier Thumbprint - Unique, exact match to the Thumbprint SerialNumber - Exact match to the serial number IssuerDN - Case insensitive match to the Issuer DistinguishedName IssuerName - Case insensitive match to any Issuer DistinguishedName which contains the searchValue. SubjectDN - Case insensitive match to the Subject DistinguishedName SubjectName - Case insensitive match to any Subject DistinguishedName which contains the searchValue PeerNames - Case insensitive match to any PeerNames list which contains the searchValue OwnerList - Case insensitive match to any OwnerList list which contains the searchValue
A ListOfObjects is returned containing the matching SYS.X509Credentials instances. The ListOfObjects will have no entries if there are no matches. If the field name is not valid, then "" will be returned.

◆ FindByFieldNumber()

_.Library.ListOfObjects FindByFieldNumber	(	_.Library.Integer	field,
		_.Library.String	searchValue,
		_.Library.Boolean	caseSensitive,
		_.Library.Boolean	contains,
		_.Library.ListOfObjects	credentialsList
	)

static

Internal function to find the SYS.X509Credentials instances which have a match in the specified.

field number to the specified value. If the credentialsList property is specified, then only matches from this list are returned. Otherwise all matches from the database are returned.

◆ GetByAlias()

_.SYS.X509Credentials GetByAlias	(	_.Library.String	alias,
		_.Library.String	pwd
	)

static

Get a X.509 credentials record based on the unique alias.

The record must have a null OwnerList or be owned by the current user to be returned.

◆ GetByCertificate()

_.SYS.X509Credentials GetByCertificate ( _.Library.Binary searchValue )

static

Get a X.509 credentials record based on the unique X.509 certificate.

The record must have a null OwnerList or be owned by the current user to be returned.

◆ GetByCertificateWithPrivateKey()

_.SYS.X509Credentials GetByCertificateWithPrivateKey ( _.Library.Binary searchValue )

static

Get a X.509 credentials record based on the unique X.509 certificate for use with a private key.

The record must have a null OwnerList or be owned by the current user to be returned.

◆ GetByRSAKeyValue()

_.SYS.X509Credentials GetByRSAKeyValue ( _.XML.Security.RSAKeyValue searchValue )

static

Get a X.509 credentials record which has a certificate whose.

public key matches the specified RSAKeyValue. The record must have a null OwnerList or be owned by the current user to be returned.

◆ GetBySubjectKeyIdentifier()

_.SYS.X509Credentials GetBySubjectKeyIdentifier ( _.Library.Binary searchValue )

static

Get a X.509 credentials record based on the unique SubjectKeyIdentifier.

The record must have a null OwnerList or be owned by the current user to be returned.

◆ GetByThumbprint()

_.SYS.X509Credentials GetByThumbprint ( _.Library.Binary searchValue )

static

Get a X.509 credentials record based on the unique SHA1 Thumbprint.

The record must have a null OwnerList or be owned by the current user to be returned.

◆ GetNext()

_.SYS.X509Credentials GetNext ( _.Library.String alias )

static

Return the next X.509 credentials object that is accessible to.

the current user based on the alias argument. Return "" if no more objects available. The alias argument is updated to correspond to the returned object.

◆ GetProperties()

_.Library.Status GetProperties	(	_.Library.ObjectHandle	X509Credential,
		_.Library.String	Properties
	)

static

Get a X509Credential's properties.

Gets a X509Credential's properties from the security database.
Parameters:
X509Credential - Object handle to a X509Credentials record
Return values:
Properties - See the Get method for more information on properties returned

◆ Import()

_.Library.Status Import	(	_.Library.String	FileName,
		_.Library.Integer	NumImported,
		_.Library.Integer	Flags
	)

static

Import X509Credential records from an xml file.

Parameters:
FileName - Filename to import X509Credential records from
NumImported (byref) - Returns number of records imported
Flags - Control import
Bit 0 - Do not import records, just return count
Note: On failure, no records will be imported

◆ Modify()

_.Library.Status Modify	(	_.Library.String	Name,
		_.Library.String	Properties
	)

static

Modify a X509Credential.

Modify an existing X509Credential's properties in the security database.
Parameters:
Name - Name of the X509Credential to modify
Properties - Array of properties to modify.
See the Get() method for a description of the Properties parameter.
If a specific property is not passed in the properties array, the value is not modified.

◆ NormalizeDN()

_.Library.String NormalizeDN ( _.Library.String name )

static

Convert variants of the string representation of a Distinguished Name as defined by.

section 4 of RFC 2253 to normal form

◆ Save()

_.Library.Status Save ( )

The Save method saves an X509Credentials object.

To save a new X509Credentials object use the following procedure:

get a new object with New.
set required unique Alias property.
set any needed properties.
load the certificate with the LoadCertificate method.
load the private key with the LoadPrivateKeymethod.
call the Save method.

Member Data Documentation

◆ DOMAIN

DOMAIN = None

static

The SYS.X509Credentials class defines the X.509 credentials which consist of an X.509 certificate and an optionally associated private key.

An optional OwnerList may be specified to restrict which users have access to these credentials. The normal ObjectScript and SQL methods for accessing this data should not be used and will not work with normal security in order to maintain the security of the credentials.

Default Localization Domain

◆ Alias

Alias

The Alias is defined on import and identifies the X.509 certificate and private key.

◆ CAFile

CAFile

File containing X.509 certificate(s) of trusted Certificate Authorities.

Can be an absolute pathname or a pathname relative to the manager's directory.
When WS-Security validates a Signature where the certificate is not included in the SOAP message, the certificate is found in an SYS.X509Credentials object. If the CAFile property is specified in the SYS.X509Credentials object, CAFile gives the path of the CA file. If the CAFile property is not specified, then iris.cer in the mgr directory is used as the CA file.

◆ Certificate

Certificate

The X.509 certificate.

◆ IssuerDN

IssuerDN

Issuer DistinguishedName of the certificate.

This property is only set via the LoadCertificate method.

◆ OwnerList

OwnerList

The optional comma separated list of usernames which may access these credentials.

If no OwnerList is specified, the credentials are available to any user.

◆ PeerNames

PeerNames

PeerNames is an optional comma separated list of peers which expect this.

certificate to be used. Each peer name will normally be a DNS name. However, any application defined name may be used.

◆ PrivateKey

PrivateKey

The private key associated with the certificate stored as PEM encoded text.

The private key will be in memory only when set before save. The private key will not be loaded from global during open since transient.

◆ PrivateKeyPassword

PrivateKeyPassword

Optional password for the private key.

The private key password will be in memory only when set before save. The private key password will not be loaded from global during open since transient.

◆ PrivateKeyType

PrivateKeyType

The type of the associated private key.

Only RSA is supported initially.

◆ SerialNumber

SerialNumber

SerialNumber of the certificate – unique for the Issuer.

This property is only set via the LoadCertificate method.

◆ SubjectDN

SubjectDN

Subject DistinguishedName of the certificate.

This property is only set via the LoadCertificate method.

◆ SubjectKeyIdentifier

SubjectKeyIdentifier

X.509 SubjectKeyIdentifier from the certificate.

This property is only set via the LoadCertificate method.

◆ Thumbprint

Thumbprint

SHA1 Thumbprint of the certificate.

This property is only set via the LoadCertificate method.

◆ ValidityNotAfter

ValidityNotAfter

X.509 ValidityNotAfter from the certificate.

◆ ValidityNotBefore

ValidityNotBefore

X.509 ValidityNotBefore from the certificate.

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Detailed Description

Member Function Documentation

◆ OnValidateObject()

◆ BinaryToHexString()

◆ Exists()

◆ Export()

◆ FindByField()

◆ FindByFieldNumber()

◆ GetByAlias()

◆ GetByCertificate()

◆ GetByCertificateWithPrivateKey()

◆ GetByRSAKeyValue()

◆ GetBySubjectKeyIdentifier()

◆ GetByThumbprint()

◆ GetNext()

◆ GetProperties()

◆ Import()

◆ Modify()

◆ NormalizeDN()

◆ Save()

Member Data Documentation

◆ DOMAIN

◆ Alias

◆ CAFile

◆ Certificate

◆ IssuerDN

◆ OwnerList

◆ PeerNames

◆ PrivateKey

◆ PrivateKeyPassword

◆ PrivateKeyType

◆ SerialNumber

◆ SubjectDN

◆ SubjectKeyIdentifier

◆ Thumbprint

◆ ValidityNotAfter

◆ ValidityNotBefore
