Web Services and Methods to support InterSystems IRIS monitoring via the WS-Management specification

The services supported include wxf:Get, wsen:Enumerate, wsen:Pull, wsen:Release, wse:Subscribe, wse:Renew and wse:Unsubscribe. More...

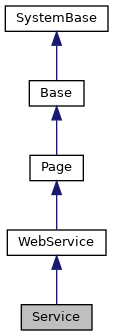

Inheritance diagram for Service:

[legend]

Collaboration diagram for Service:

[legend]

Public Member Functions
SYS.WSMon.wsen.EnumerateResponse	Enumerate (SYS.WSMon.wsen.Enumerate Enumerate)
	Support for a WS-Enumerate Enumerate request, as defined in the WS-Management specification. More...

SYS.WSMon.wsen.PullResponse	Pull (SYS.WSMon.wsen.Pull Pull)
	Support for a WS-Enumerate Pull request, as defined in the WS-Management specification. More...

	Release (SYS.WSMon.wsen.Release Release)
	Support for a WS-Enumerate Release request, as defined in the WS-Management specification. More...

SYS.WSMon.wse.RenewResponse	Renew (SYS.WSMon.wse.Renew Renew)
	Support for a WS-Eventing Renew request, as defined in the WS-Management specification. More...

SYS.WSMon.wse.SubscribeResponse	Subscribe (SYS.WSMon.wse.Subscribe Subscribe)
	Support for a WS-Eventing Subscribe request, as defined in the WS-Management specification. More...

SYS.WSMon.wsResource	TransferGet ()
	This method implements the WS-Management WS-Transfer:Get action. More...

SYS.WSMon.wse.UnsubscribeResponse	Unsubscribe (SYS.WSMon.wse.Unsubscribe Unsubscribe)
	Support for a WS-Eventing Unsubscribe request, as defined in the WS-Management specification. More...

Static Public Attributes
	ARGUMENTSTYLE = None
	Use unwrapped style messages.

	NAMESPACE = None
	SOAP Namespace for the WebService.

	SERVICENAME = None
	Name of the WebService.

	WSADDRESSING = None
	WS-Management uses WS-Addressing and SOAP 1.2.

Detailed Description

Web Services and Methods to support InterSystems IRIS monitoring via the WS-Management specification

The services supported include wxf:Get, wsen:Enumerate, wsen:Pull, wsen:Release, wse:Subscribe, wse:Renew and wse:Unsubscribe.

See the WS-Management specification for more information, and the comments on the Methods below for details of the implementation.

This is an example of the SOAP request and response message for a Transfer:Get from the WS-Management specification.

<s:Envelope xmlns:s="http://www.w3.org/2003/05/soap-envelope" xmlns:wsa="http://schemas.xmlsoap.org/ws/2004/08/addressing" xmlns:wsman="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd"> <s:Header> <wsa:To>http://1.2.3.4/wsman/</wsa:To> <wsman:ResourceURI>http://example.org/2005/02/physicalDisk </wsman:ResourceURI> <wsa:ReplyTo> <wsa:Address> http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous </wsa:Address> </wsa:ReplyTo> <wsa:Action> http://schemas.xmlsoap.org/ws/2004/09/transfer/Get </wsa:Action> <wsa:MessageID> urn:uuid:d9726315-bc91-430b-9ed8-ce5ffb858a87 </wsa:MessageID> <wsman:SelectorSet> <wsman:Selector Name="LUN"> 2 </wsman:Selector> </wsman:SelectorSet> <wsman:OperationTimeout> PT30S </wsman:OperationTimeout> </s:Header> <s:Body/> </s:Envelope>

<s:Envelope xmlns:s="http://www.w3.org/2003/05/soap-envelope" xmlns:wsa="http://schemas.xmlsoap.org/ws/2004/08/addressing" xmlns:wsman="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd"> <s:Header> <wsa:To> http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous </wsa:To> <wsa:Action s:mustUnderstand="true"> http://schemas.xmlsoap.org/ws/2004/09/transfer/GetResponse </wsa:Action> <wsa:MessageID s:mustUnderstand="true"> urn:uuid:217a431c-b071-3301-9bb8-5f538bec89b8 </wsa:MessageID> <wsa:RelatesTo> urn:uuid:d9726315-bc91-430b-9ed8-ce5ffb858a87 </wsa:RelatesTo> </s:Header> <s:Body> <PhysicalDisk xmlns="http://schemas.example.org/2005/02/samples/physDisk"> <Manufacturer> Acme, Inc. </Manufacturer> <Model> 123-SCSI 42 GB Drive </Model> <LUN> 2 </LUN> <Cylinders> 16384 </Cylinders> <Heads> 80 </Heads> <Sectors> 63 </Sectors> <OctetsPerSector> 512 </OctetsPerSector> <BootPartition> 0 </BootPartition> </PhysicalDisk> </s:Body> </s:Envelope>

Member Function Documentation

◆ Enumerate()

SYS.WSMon.wsen.EnumerateResponse Enumerate ( SYS.WSMon.wsen.Enumerate Enumerate )

Support for a WS-Enumerate Enumerate request, as defined in the WS-Management specification.

The resource is taken from the wsman:ResourceURI header, and each resource requested returns a different class structure. The last piece of the resource indicates the class name.

Only simple, non-filtered Enumeration is supported at this time. We do support (and recommend) the OptimizeEnumeration header which allows enumerated class instances to be returned as part of the response (rather than requiring a separate wse:Pull request).

Resources which can be enumerated:

http://intersystems.com/cache/wsman/1/resource/SYS.Stats.Buffer
http://intersystems.com/cache/wsman/1/resource/SYS.Stats.WriteDaemon
http://intersystems.com/cache/wsman/1/resource/SYS.Stats.Resource
http://intersystems.com/cache/wsman/1/resource/SYS.WSMon.wsDatabase

◆ Pull()

SYS.WSMon.wsen.PullResponse Pull ( SYS.WSMon.wsen.Pull Pull )

Support for a WS-Enumerate Pull request, as defined in the WS-Management specification.

Returns enumerated class instances based on the EnumerationContext returned in the wse:Enumerate response (or the reponse from a previous wse:Pull request).

◆ Release()

Release ( SYS.WSMon.wsen.Release Release )

Support for a WS-Enumerate Release request, as defined in the WS-Management specification.

This service is currently just a no-op, as no context is maintained beyond what's returned in the EnumerationContext, but we accept the request without error (as recommended in the WS-Management spec).

◆ Renew()

SYS.WSMon.wse.RenewResponse Renew ( SYS.WSMon.wse.Renew Renew )

Support for a WS-Eventing Renew request, as defined in the WS-Management specification.

This renews and extends the Expires time on the current subscription based on the wse:Identifier.

◆ Subscribe()

SYS.WSMon.wse.SubscribeResponse Subscribe ( SYS.WSMon.wse.Subscribe Subscribe )

Support for a WS-Eventing Subscribe request, as defined in the WS-Management specification.

No Filtering supported at this time. No EndTo message is currently sent, and the EndTo address (if present) must be the same as the NotifyTo address. Only the default 'Push' delivery mode is currently supported.

Notifications which get returned once a system has subscribed are the same 'events' as signaled by SNMP. See the InterSystems IRIS Monitoring Guide for details. The Notifications sent to a subscriber's EventSink will have a SOAP Action of "http://www.intersystems.com/cache/wsmon/1/SYS.WSMon.CacheEvent", and will contain an instance of the SYS.WSMon.wsEvent class as the body.

A Notification message would look something like this:

<?xml version="1.0" encoding="UTF-8" ?> <SOAP-ENV:Envelope xmlns:SOAP-ENV='http://www.w3.org/2003/05/soap-envelope' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:s='http://www.w3.org/2001/XMLSchema' xmlns:wsa='http://www.w3.org/2005/08/addressing'> <SOAP-ENV:Header> <MaxEnvelopeSize xmlns="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd" xmlns:wsman="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd">32768</MaxEnvelopeSize> <OperationTimeout xmlns="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd" xmlns:wsman="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd">PT30S</OperationTimeout> <ResourceURI xmlns="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd" xmlns:wsman="http://schemas.dmtf.org/wbem/wsman/1/wsman.xsd">http://intersystems.com/cache/wsman/1/resource/SYS.WSMon.wsEvent</ResourceURI> <wsa:Action>http://www.intersystems.com/cache/wsmon/1/SYS.WSMon.CacheEvent</wsa:Action> <wsa:MessageID>urn:uuid:E4480818-98AC-4F8D-8FC3-2EF4A20055A9</wsa:MessageID> <wsa:ReplyTo><wsa:Address>http://www.w3.org/2005/08/addressing/anonymous</wsa:Address></wsa:ReplyTo> <wsa:To>http://rdavisE6500:8080/csp/sys/SYS.WSMon.wsman.Service.cls</wsa:To> </SOAP-ENV:Header> <SOAP-ENV:Body><Event xmlns="http://www.intersystems.com/cache/wsman/1/xsd"> <System>rdavisE6500</System> <Instance>C092</Instance> <Name>cacheTest</Name> <Severity>3</Severity> <SnmpId>1</SnmpId> <AdditionalInfo>This is a test</AdditionalInfo> </Event></SOAP-ENV:Body> </SOAP-ENV:Envelope>

◆ TransferGet()

SYS.WSMon.wsResource TransferGet ( )

This method implements the WS-Management WS-Transfer:Get action.

◆ Unsubscribe()

SYS.WSMon.wse.UnsubscribeResponse Unsubscribe ( SYS.WSMon.wse.Unsubscribe Unsubscribe )

Support for a WS-Eventing Unsubscribe request, as defined in the WS-Management specification.

This deletes the current subscription based on the wse:Identifier.
