This class represents detailed system metrics captured for 'seizes' of system resources. More...

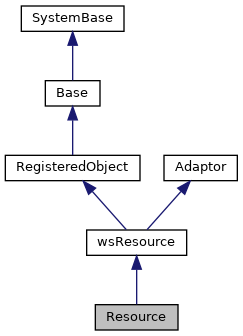

Inheritance diagram for Resource:

[legend]

Collaboration diagram for Resource:

[legend]

Static Public Member Functions
_.Library.Status	DisplayClose (_.Library.Binary qHandle)
	This class represents detailed system metrics captured for 'seizes' of system resources. More...

SYS.Stats.Resource	Sample (_.Library.Integer Index)
	Instantiate the class for a specific resource and fill in current values for all properties. More...

Public Attributes
	Aseize
	Number of Aseizes. More...

	Bseize
	Number of Bseizes. More...

	BusySets
	Number of BusySet. More...

	Name
	The name of the resource. More...

	Nseize
	Number of Nseizes. More...

	Seize
	Number of Seizes. More...

Detailed Description

This class represents detailed system metrics captured for 'seizes' of system resources.

Each instance of the class represents a different resource which controls access to a different part of the system code. Examples are 'Pid' for the internal process table, 'Lock' for locking structures, 'Stat' for statistics, etc.

The current values for each class instance may be fetched using the Query 'Sample', and then the current value of each property can be accessed.

For example:

s sz="Name,Seize,Nseize,Aseize,Bseize,BusySet" ; list of properties s rset=##class(ResultSet).New("SYS.Stats.Resource:Sample") d rset.Execute() s len=$l(sz,",") ; list all resources and related seize counts while rset.Next() { f i=1:1:len w rset.Data($p(sz,",",i)) w:i<len "," w ! }

Metrics for InterSystems IRIS instance resource contention

Member Function Documentation

◆ DisplayClose()

_.Library.Status DisplayClose ( _.Library.Binary qHandle )

static

This class represents detailed system metrics captured for 'seizes' of system resources.

Each instance of the class represents a different resource which controls access to a different part of the system code. Examples are 'Pid' for the internal process table, 'Lock' for locking structures, 'Stat' for statistics, etc.

The current values for each class instance may be fetched using the Query 'Sample', and then the current value of each property can be accessed.

For example:

s sz="Name,Seize,Nseize,Aseize,Bseize,BusySet" ; list of properties s rset=##class(ResultSet).New("SYS.Stats.Resource:Sample") d rset.Execute() s len=$l(sz,",") ; list all resources and related seize counts while rset.Next() { f i=1:1:len w rset.Data($p(sz,",",i)) w:i<len "," w ! }

Metrics for InterSystems IRIS instance resource contention

◆ Sample()

SYS.Stats.Resource Sample ( _.Library.Integer Index )

static

Instantiate the class for a specific resource and fill in current values for all properties.

'Index' is an integer from 1 to 'n' used to reference a specific resource. An index greater than 'n' returns a blank resource Name. To find a specific resource Name, you would loop through the Resource list starting at 1 until you find the Name (or reach a blank Name).

Allows for XML output of a single Resource instance.

Member Data Documentation

◆ Aseize

Aseize

Number of Aseizes.

◆ Bseize

Bseize

Number of Bseizes.

◆ BusySets

BusySets

Number of BusySet.

◆ Name

Name

The name of the resource.

◆ Nseize

Nseize

Number of Nseizes.

◆ Seize

Seize

Number of Seizes.
