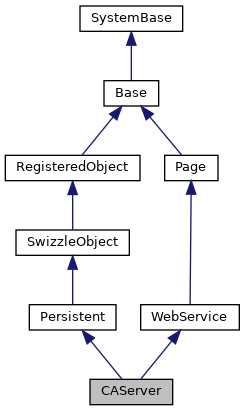

Inheritance diagram for CAServer:

[legend]

Collaboration diagram for CAServer:

[legend]

Public Member Functions
_.Library.String	BuildSubject (_.Library.List values)
	Build the "-subject" argument to the "openssl req" command from a List.

PKI.Certificate	GetCertificate (_.Library.String number)
	Web method for retrieving an X.509 Certificate issued by this Certificate Authority server. More...

_.XML.DataSet	ListCertificates (_.Library.String hostname, _.Library.String instance)
	Web method for retrieving a list of X.509 Certificates issued by this Certificate Authority server. More...

_.Library.String	Sign (_.Library.String name, _.Library.String password, _.Library.Integer certType, _.Library.Status st)
	Issue an X.509 Certificate for a Certificate Signing Request. More...

_.Library.String	SubmitCSR (PKI.CSR csr)
	Web method for submitting a Certificate Signing Request. More...

Static Public Member Functions
_.Library.String	Configure (PKI.CAServer server, _.Library.List attrList, _.Library.String password, _.Library.Integer days, _.Library.Status st)
	Two use cases: More...

Public Attributes
	AdminEmail
	Email address of the administrator of this Certificate Authority server. More...

	AttributePrompt
	Prompts to use when building a List for constructing a Subject Distinguished Name. More...

	AttributeType
	Attribute type keywords to use when building the "-subject" argument to the "openssl req" command. More...

	CAFilename
	Name of this Certificate Authority server's Certificate (.cer) and Private Key (.key) files. More...

	CAPath
	Path to this Certificate Authority server's Certificate (.cer) and Private Key (.key) files. More...

	Days
	Validity period (in days) for issued certificates. More...

	Name
	The default Certificate Authority server has the name "IRIS CA". More...

	SMTPPassword
	SMTP password for sending email notification on receipt of a. More...

	SMTPServer
	SMTP server for sending email notification on receipt of a. More...

	SMTPUsername
	SMTP username for sending email notification on receipt of a. More...

Static Public Attributes
	NAMESPACE = None
	SOAP Namespace for the WebService.

	SERVICENAME = None
	Name of the WebService.

	USECLASSNAMESPACES = None
	Namespaces of referenced classes will be used in the WSDL.

Detailed Description

Certificate Authority server.

Use with PKI.CAClient.

Member Function Documentation

◆ Configure()

_.Library.String Configure	(	PKI.CAServer	server,
		_.Library.List	attrList,
		_.Library.String	password,
		_.Library.Integer	days,
		_.Library.Status	st
	)

static

Two use cases:

1) Configure this Certificate Authority server.
Must be called before Certificate Signing Requests can be submitted or Certificates issued. Creates the OpenSSL configuration file "openssl.cnf" if it does not exist. When called for the first time, this method creates this Certificate Authority server's Certificate (.cer) and Private Key (.key) files, and creates and saves its PKI.Certificate object. Once created these can not be changed. The other properties of this Certificate Authority server can be updated later.
Parameters:
server - PKI.CAServer object, with all required properties set
attrList - List containing attribute values to be used in constructing this Certificate Authority server's Subject Distinguished Name (first invocation only)
password - Password used to encrypt Private Key file (first invocation only)
days - desired validity period of CA certificate, in days
st - On return, contains a status code
Return value:
String describing successful configuration, or error<br>
2) Update the openssl.cnf file to the latest version
Calling ##class(PKI.CAServer).Configure() with no arguments will create or update the openssl.cnf file to the latest version.

◆ GetCertificate()

PKI.Certificate GetCertificate ( _.Library.String number )

Web method for retrieving an X.509 Certificate issued by this Certificate Authority server.

Parameter:
number - serial number of the X.509 Certificate requested, or 0 to request this Certificate Authority server's X.509 Certificate
Return value:
A PKI.Certificate object

◆ ListCertificates()

_.XML.DataSet ListCertificates	(	_.Library.String	hostname,
		_.Library.String	instance
	)

Web method for retrieving a list of X.509 Certificates issued by this Certificate Authority server.

Return value:
An XML.DataSet object

◆ Sign()

_.Library.String Sign	(	_.Library.String	name,
		_.Library.String	password,
		_.Library.Integer	certType,
		_.Library.Status	st
	)

Issue an X.509 Certificate for a Certificate Signing Request.

This method creates and saves a PKI.Certificate object and sends notification to the email address of the local technical contact of the Certificate Authority client that generated the Certificate Signing Request.
Parameters:
name - Name of the Certificate Signing Request to be processed
password - Password for this Certificate Authority server's Private Key file
certType - Intended usage of the issued certificate
1 = TLS/SSL, XML encryption and signature verification
2 = Intermediate Certificate Authority server
st - On return, contains a status code
Return value:
String describing successful Certificate issuance, or error

◆ SubmitCSR()

_.Library.String SubmitCSR ( PKI.CSR csr )

Web method for submitting a Certificate Signing Request.

This method saves the PKI.CSR object and sends notification to the email address of the administrator of this Certificate Authority server.
Parameter:
csr - a PKI.CSR object
Return value:
String describing successful Certificate Signing Request submission, or a SOAP fault on error

Member Data Documentation

◆ AdminEmail

AdminEmail

Email address of the administrator of this Certificate Authority server.

Email notification will be sent to this address on receipt of a Certificate Signing Request.

◆ AttributePrompt

AttributePrompt

Prompts to use when building a List for constructing a Subject Distinguished Name.

◆ AttributeType

AttributeType

Attribute type keywords to use when building the "-subject" argument to the "openssl req" command.

◆ CAFilename

CAFilename

Name of this Certificate Authority server's Certificate (.cer) and Private Key (.key) files.

◆ CAPath

CAPath

Path to this Certificate Authority server's Certificate (.cer) and Private Key (.key) files.

◆ Days

Days

Validity period (in days) for issued certificates.

◆ Name

Name

The default Certificate Authority server has the name "IRIS CA".

There is at most one per InterSystems IRIS instance.

◆ SMTPPassword

SMTPPassword

SMTP password for sending email notification on receipt of a.

Certificate Signing Request or issuance of a Certificate

◆ SMTPServer

SMTPServer

SMTP server for sending email notification on receipt of a.

Certificate Signing Request or issuance of a Certificate

◆ SMTPUsername

SMTPUsername

SMTP username for sending email notification on receipt of a.

Certificate Signing Request or issuance of a Certificate
