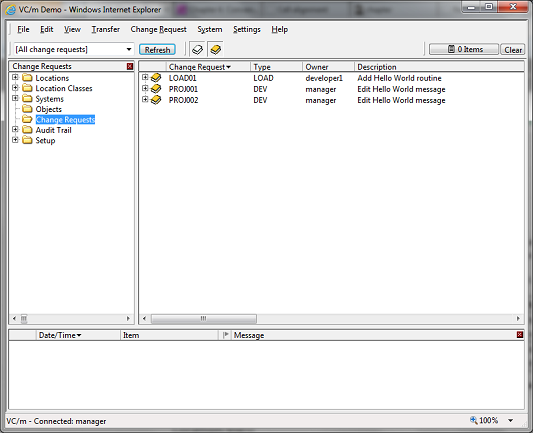

General View

---

When the top-level change request folder is selected, all the change requests which are in the VC/m database and which match the selection criteria are displayed in the main panel. The selection criteria can be changed on the select toolbar.

The icon for each change request is colored to show the status of the change request.

Color	Status	Explanation
White	Empty	No object versions belong to the change request
Amber	Registered	At least one object version belongs to this change request

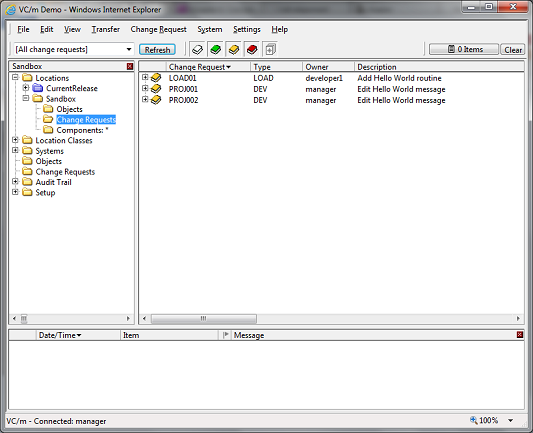

Location View

---

When the change request folder is selected for a location, all the change requests which are at that location and which match the selection criteria are displayed in the main panel. The selection criteria can be changed on the select toolbar.

The icon for each change request is colored to show the status of the change request at that location.

Color	Status	Explanation
White	Empty	No object versions belong to the change request
Green	Checked out	At least one object version in the change request is checked out at this location
Amber	Registered	At least one object version in the change request is active at this location, but none of the object versions are checked out to it
Red	Error	At least one object in the change request is missing from or in error at this location
White with asterisk (appears with 'h' when deselected)	All objects are superseded	When selected, change requests with only superseded object versions are shown, not just those with at least one object active at this location

---

See Also: Change Requests, Locations, Folders Panel, Selection Criteria and Filters
